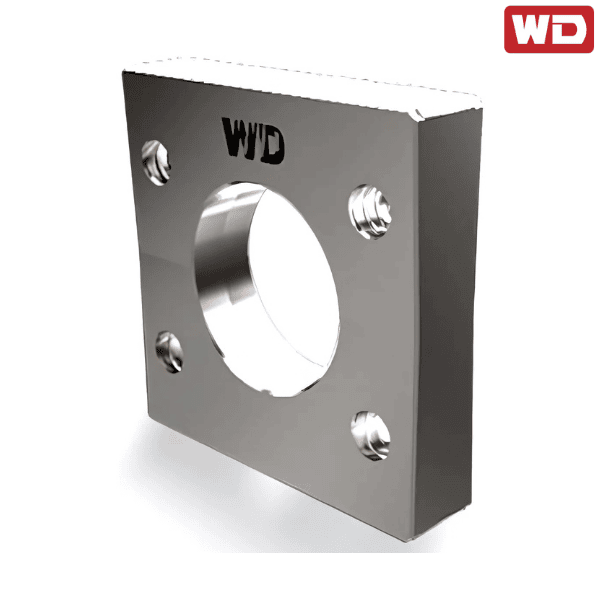

AP0-Q WD

Brand - WD
Item Number - AP0-Q WD
Category - Flange Plate

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 60 mm
Overall Bearing Width - 60 mm
Dimension (C) - 40 mm
Outside Diameter - 40 mm
Dimension (G) - M10
Dimension (H) - 30 mm
Dimension (t) - 10 mm
Type - B
Applicable Products - WD054
Reference Code in Germany - AP0-Q

♦ ♦ Images are for representation purposes only
