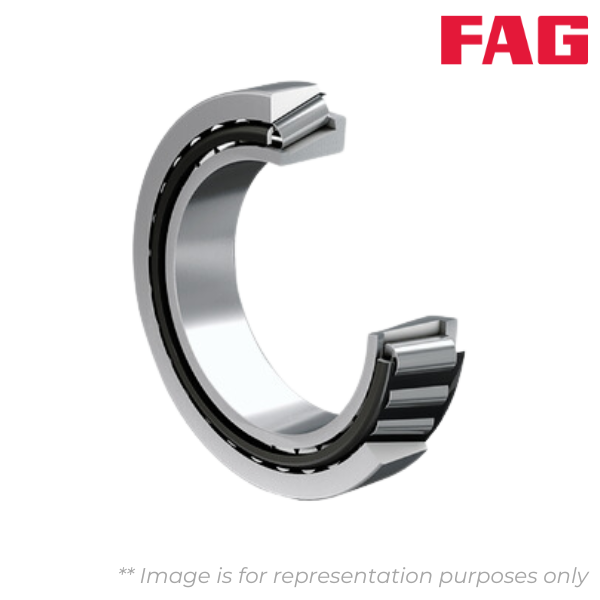

AK6379-6320 FAG

Brand - FAG
Item Number - AK6379-6320 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 3.74

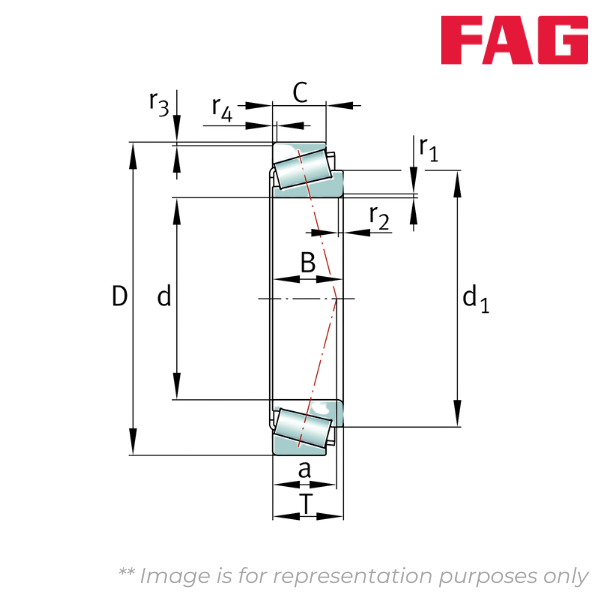

Inner Diameter (d) mm - 65.088
Inner Diameter (d) inch - 2.5625
Outer Diameter (D) mm - 135.755
Outer Diameter (D) inch - 5.3447
Inner Ring Width (B) mm - 56.007
Inner Ring Width (B) inch - 2.205
Outer Ring Width (C) mm - 44.45
Outer Ring Width (C) inch - 1.75
Total Width (T) mm - 53.975
Total Width (T) inch - 2.125
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.13
Distance Between The Apexes of The Pressure Cones (a) mm - 35
Distance Between The Apexes of The Pressure Cones (a) inch - 1.378
Guidance Rib Diameter of Inner Ring (d1) mm - 98.1
Guidance Rib Diameter of Inner Ring (d1) inch - 3.862
Maximum Diameter of Shaft Shoulder (da) mm - 77
Maximum Diameter of Shaft Shoulder (da) inch - 3.031
Minimum diameter of shaft shoulder (db) mm - 84
Minimum diameter of shaft shoulder (db) inch - 3.307
Minimum Diameter of Housing Shoulder (Da) mm - 117
Minimum Diameter of Housing Shoulder (Da) inch - 4.606
Minimum Diameter of Housing Shoulder (Db) mm - 126
Minimum Diameter of Housing Shoulder (Db) inch - 4.961
Minimum Axial Space (Ca) mm - 6
Minimum Axial Space (Ca) inch - 0.236
Minimum Axial Space (Cb) mm - 9
Minimum Axial Space (Cb) inch - 0.354
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 3.3
Maximum Fillet Radius of Housing (rb) inch - 0.13
Basic Dynamic Radial Load Rating (Cr) kN - 275
Basic Static Radial Load Rating (C0r) kN - 385
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.32
Dynamic Axial Load Factor (Y) - 1.85
Static Axial Load Factor (Y0) - 1.02
Fatigue Load Limit, Radial (Cur) kN - 49
Limiting Speed (nG) min–1 - 5200
