Description
Brand - ZEN
Item Number - ACB-4545-30-F-C-RS ZEN
Category - ACB Headset Bearings

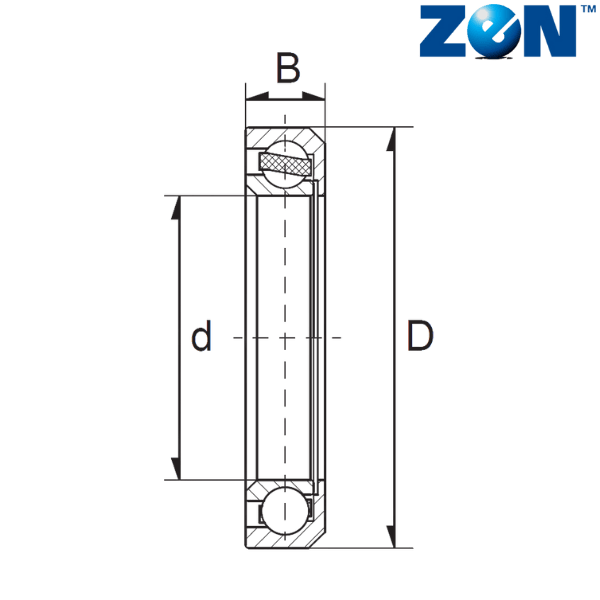

Inner Diameter (d) mm - 30.5
Outer Diameter (D) mm - 41.8
Width (B) mm - 8
Inner Ring Angle - 45º
Outer Ring Angle - 45º
Weight (kg) - 0.023

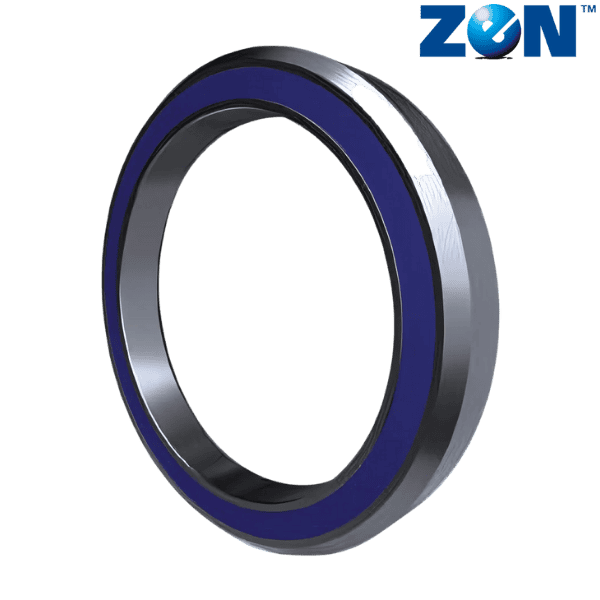

** Images are for representation purposes only
