Description
Brand - ZEN
Item Number - ACB-3645-40-C-RS ZEN
Category - ACB Headset Bearings

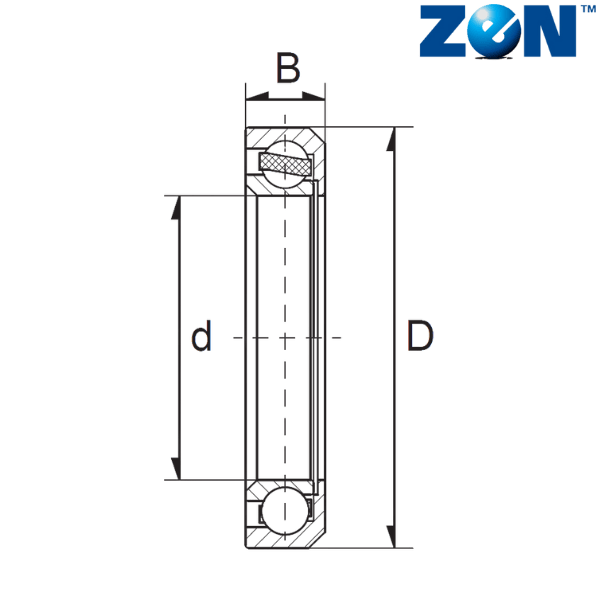

Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 51.8
Width (B) mm - 8
Inner Ring Angle - 36º
Outer Ring Angle - 45º
Weight (kg) - 0.033

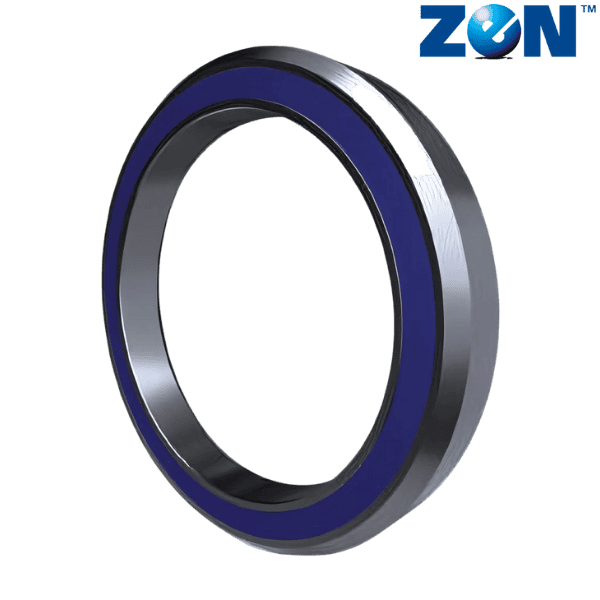

** Images are for representation purposes only
