Description
Brand - ZEN
Item Number - ACB-3645-30-A-RS ZEN
Category - ACB Headset Bearings

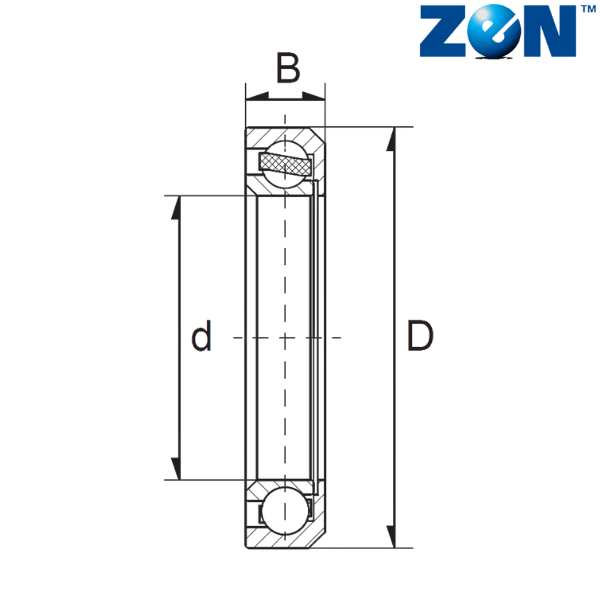

Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 41
Width (B) mm - 6.5
Inner Ring Angle - 36º
Outer Ring Angle - 45º
Weight (kg) - 0.021
** Images are for representation purposes only
