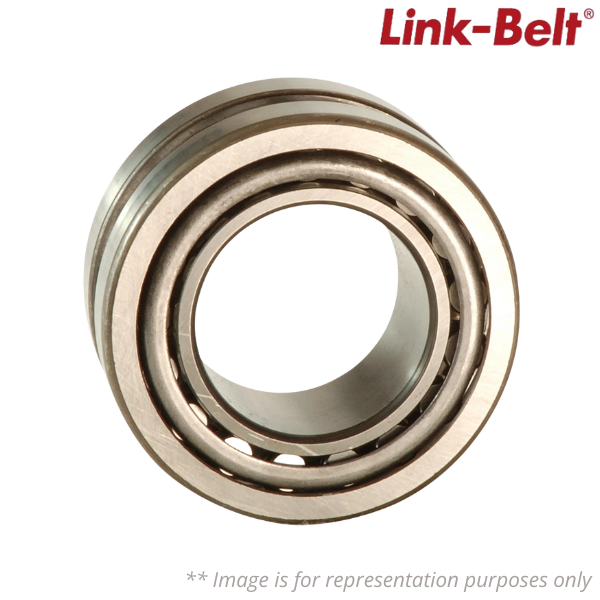

A24236MC3 Link-Belt

Brand - Link-Belt
Part Number - A24236MC3 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327004828
Material - 10413289
Model - A20000M
Bore Size (in) - 2.3616 in
Fixed vs. Expansion - Fixed
Locking Type - Direct Shaft Mount
Bearing Brand - LINK-BELT A SPHER RLR BRGS
Bearing Type - SPHERICAL ROLLER BRG
Bore Length (in) - 1.75 in
Bore Type - Straight
C Dynamic Load Rating - 31400 lb
Co Static Load Rating - 53500 lb
Height - 2.19
Housing Fillet Radius (in) - 0.078 in
Inner Ring Bore Radius (in) - 0.062 in
Length - 5.31
Maximum Shoulder Diameter (in) - 3.87 in
Maximum Speed (RPM) - 3600 rpm
Minimum Shoulder Diameter (in) - 2.68 in
Mounted Clearance - C3 INCREASED
Weight (kg) - 4.16
Outer Ring Width (in) - 0.7630 in
Outside Diameter (in) - 4.3307 in
Retainer Type - STEEL
Sealed - None
Service Instructions - BR3-006 LINK-BELT A SERIES
Unit of Dimension - IN
Vibration Frequency Fundamental Train - Available on Request
Vibration Frequency Inner Ring Defect - Available on Request
Vibration Frequency Outer Ring Defect - Available on Request
Vibration Frequency Roller Spin - Available on Request
Volume - 1.012
Volume Unit - CDM
Width - 5.31
