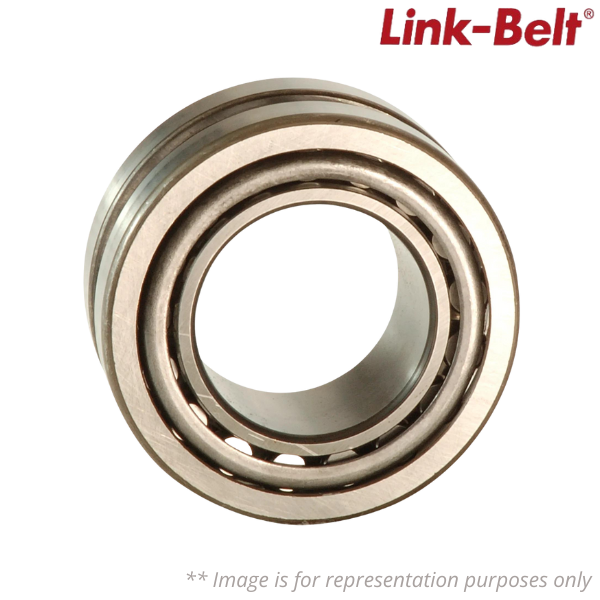

A24196MC0 Link-Belt

Brand - Link-Belt
Part Number - A24196MC0 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327004798
Material - 10420837
Model - A20000M
Bore Size (in) - 1.968 in
Fixed vs. Expansion - Fixed
Locking Type - Direct Shaft Mount
Bearing Brand - LINK-BELT A SPHER RLR BRGS
Bearing Type - SPHERICAL ROLLER BRG
Bore Length (in) - 2.062 in
Bore Type - Straight
C Dynamic Load Rating - 37000 lb
Co Static Load Rating - 55200 lb
Height - 2.19
Housing Fillet Radius (in) - 0.08 in
Inner Ring Bore Radius (in) - 0.062 in
Length - 5.31
Maximum Shoulder Diameter (in) - 3.83 in
Maximum Speed (RPM) - 3850 rpm
Minimum Shoulder Diameter (in) - 2.18 in
Mounted Clearance - C0 STANDARD
Weight (kg) - 5.3
Outer Ring Width (in) - 0.8360 in
Outside Diameter (in) - 4.3299 in
Retainer Type - STEEL
Sealed - None
Service Instructions - BR3-006 LINK-BELT A SERIES
Unit of Dimension - IN
Vibration Frequency Fundamental Train - Available on Request
Vibration Frequency Inner Ring Defect - Available on Request
Vibration Frequency Outer Ring Defect - Available on Request
Vibration Frequency Roller Spin - Available on Request
Volume - 1.012
Volume Unit - CDM
Width - 5.31
