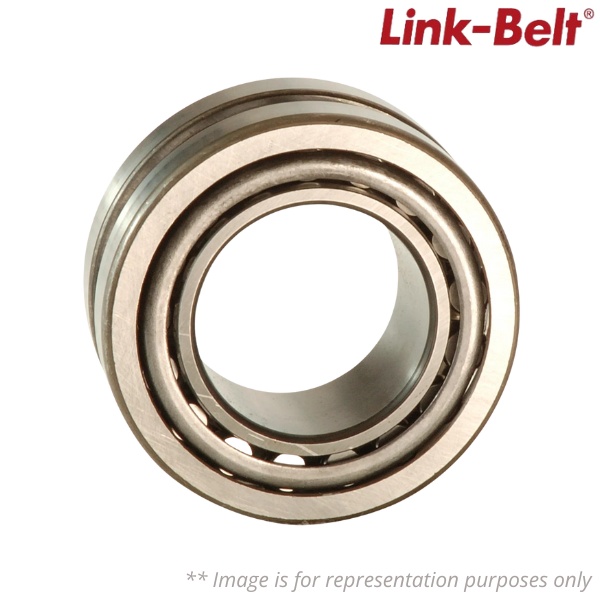

A22275MC0 Link-Belt

Brand - Link-Belt
Part Number - A22275MC0 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327004545
Material - 10439110
Model - A20000M
Bore Size (in) - 2.7559 in
Fixed vs. Expansion - Fixed
Locking Type - Direct Shaft Mount
Bearing Brand - LINK-BELT A SPHER RLR BRGS
Bearing Type - SPHERICAL ROLLER BRG
Bore Type - Straight
C Dynamic Load Rating - 41800 lb
Co Static Load Rating - 71500 lb
Height - 2.19
Length - 5.31
Maximum Speed (RPM) - 3100 rpm
Mounted Clearance - C0 STANDARD
Weight (kg) - 3.175144
Outside Diameter (mm) - 5.1172 mm
Retainer Type - STEEL
Sealed - None
Service Instructions - BR3-006 LINK-BELT A SERIES
Unit of Dimension - IN
Vibration Frequency Fundamental Train - Available on Request
Vibration Frequency Inner Ring Defect - Available on Request
Vibration Frequency Outer Ring Defect - Available on Request
Vibration Frequency Roller Spin - Available on Request
Volume - 1.012
Volume Unit - CDM
Width - 5.31
