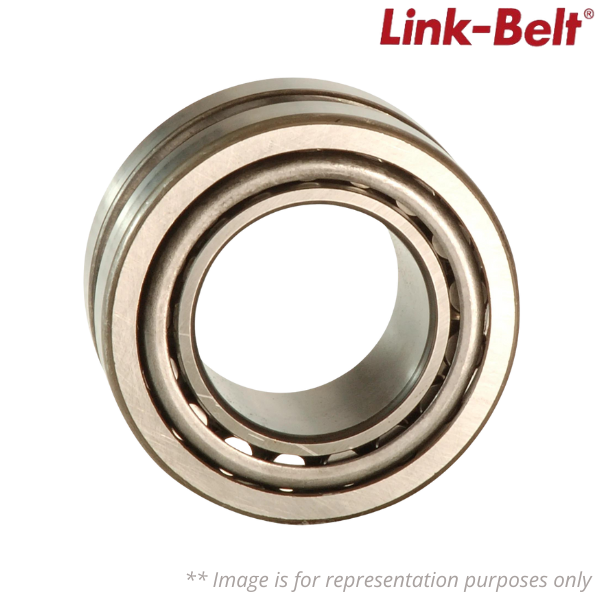

A22177MC0 Link-Belt

Brand - Link-Belt
Part Number - A22177MC0 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327004477
Material - 10439109
Model - A20000M
Bore Size (in) - 1.7712 in
Fixed vs. Expansion - Fixed
Locking Type - Direct Shaft Mount
Bearing Brand - LINK-BELT A SPHER RLR BRGS
Bearing Type - SPHERICAL ROLLER BRG
Bore Length (in) - 1.578 in
Bore Type - Straight
C Dynamic Load Rating - 20200 lb
Co Static Load Rating - 28700 lb
Height - 2.13
Housing Fillet Radius (in) - 0.08 in
Inner Ring Bore Radius (in) - 0.062 in
Length - 3.69
Maximum Shoulder Diameter (in) - 2.87 in
Maximum Speed (RPM) - 4800 rpm
Minimum Shoulder Diameter (in) - 2.00 in
Mounted Clearance - C0 STANDARD
Weight (kg) - 2
Outer Ring Width (in) - 0.6510 in
Outside Diameter (in) - 3.3464 in
Retainer Type - STEEL
Sealed - None
Service Instructions - BR3-006 LINK-BELT A SERIES
Unit of Dimension - IN
Vibration Frequency Fundamental Train - Available on Request
Vibration Frequency Inner Ring Defect - Available on Request
Vibration Frequency Outer Ring Defect - Available on Request
Vibration Frequency Roller Spin - Available on Request
Volume - 0.125
Volume Unit - GLL
Width - 3.69
