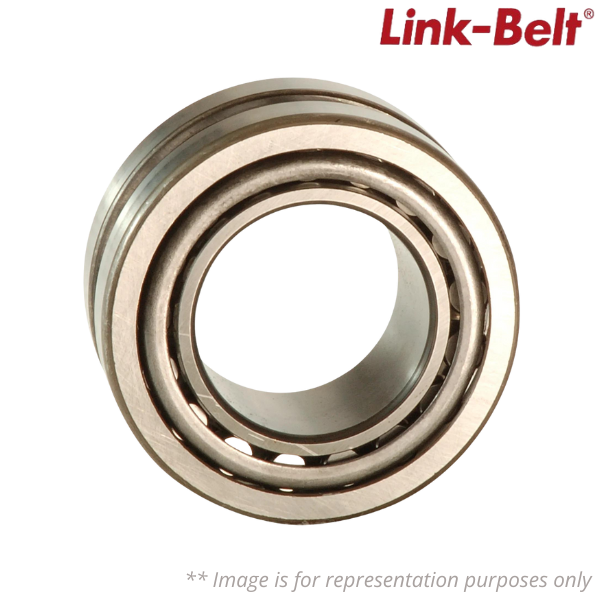

A22125 Link-Belt

Brand - Link-Belt
Part Number - A22125 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327004392
Material - 10417830
Model - A20000
Bore Size (in) - 1.25 in
Fixed vs. Expansion - Fixed
Locking Type - Direct Shaft Mount
Bearing Brand - LINK-BELT A SPHER RLR BRGS
Bearing Type - SPHERICAL ROLLER BRG
Bore Length (in) - 1.312 in
Bore Type - Straight
C Dynamic Load Rating - 13700 lb
Co Static Load Rating - 18100 lb
Height - 2
Housing Fillet Radius (in) - 0.046 in
Inner Ring Bore Radius (in) - 0.062 in
Length - 3
Maximum Shoulder Diameter (in) - 2.31 in
Maximum Speed (RPM) - 6200 rpm
Minimum Shoulder Diameter (in) - 1.50 in
Weight (kg) - 0.48987936
Outer Ring Width (in) - 0.5410 in
Outside Diameter (in) - 2.625 in
Retainer Type - STEEL
Sealed - None
Service Instructions - BR3-006 LINK-BELT A SERIES
Unit of Dimension - IN
Vibration Frequency Fundamental Train - Available on Request
Vibration Frequency Inner Ring Defect - Available on Request
Vibration Frequency Outer Ring Defect - Available on Request
Vibration Frequency Roller Spin - Available on Request
Volume - 0.078
Volume Unit - GLL
Width - 3
