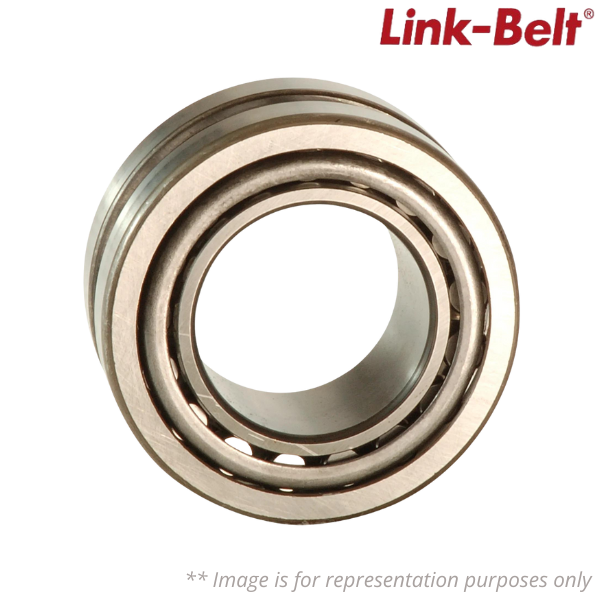

A22118MC4 Link-Belt

Brand - Link-Belt
Part Number - A22118MC4 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327004385
Material - 10431241
Model - A20000M
Bore Size (in) - 1.1875 in
Fixed vs. Expansion - Fixed
Locking Type - Direct Shaft Mount
Bearing Brand - LINK-BELT A SPHER RLR BRGS
Bearing Type - SPHERICAL ROLLER BRG
Bore Type - Straight
C Dynamic Load Rating - 13700 lb
Co Static Load Rating - 18100 lb
Height - 2
Length - 3
Maximum Speed (RPM) - 6200 rpm
Mounted Clearance - C4 INCREASED
Weight (kg) - 0.55338224
Outside Diameter (mm) - 2.625 mm
Retainer Type - STEEL
Sealed - None
Service Instructions - BR3-006 LINK-BELT A SERIES
Unit of Dimension - IN
Vibration Frequency Fundamental Train - Available on Request
Vibration Frequency Inner Ring Defect - Available on Request
Vibration Frequency Outer Ring Defect - Available on Request
Vibration Frequency Roller Spin - Available on Request
Volume - 0.078
Volume Unit - GLL
Width - 3
