9386H/9321 (Y9S-9321) TIMKEN

Brand - TIMKEN
Item Number - 9386H/9321 (Y9S-9321) TIMKEN
Also Known As - 9386H - 9321 (Y9S-9321)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 84.138
Bore Diameter (d) inch - 3.3125
Outer Diameter (D) mm - 171.45
Outer Diameter (D) inch - 6.75
Width (T) mm - 98.425
Width (T) inch - 3.875
Width (B) mm - 92.076
Width (B) inch - 3.625
Dynamic Radial Rating (C1) N - 632000
Dynamic Radial Rating (C1) lbf - 142000
Factor (e) - 0.76
Factor (Y1) - 0.88
Factor (Y2) - 1.31
Dynamic Radial Rating (90 million revolutions) (C90) N - 94100
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 21200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 123000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 27700
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 164000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 36800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.76
Maximum Shaft Fillet Radius (R) mm - 0.5
Maximum Shaft Fillet Radius (R) inch - 0.02
Backing Shoulder Diameter (db) mm - 98.3
Backing Shoulder Diameter (db) inch - 3.87
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 147
Cup Frontface Backing Diameter (Da) inch - 5.79
Weight (kg) - 9.83
Weight (lbs) - 21.66
Outer Spacer - Y9S-9321
Inner Part Number - 9386H
Outer Part Number - 9321

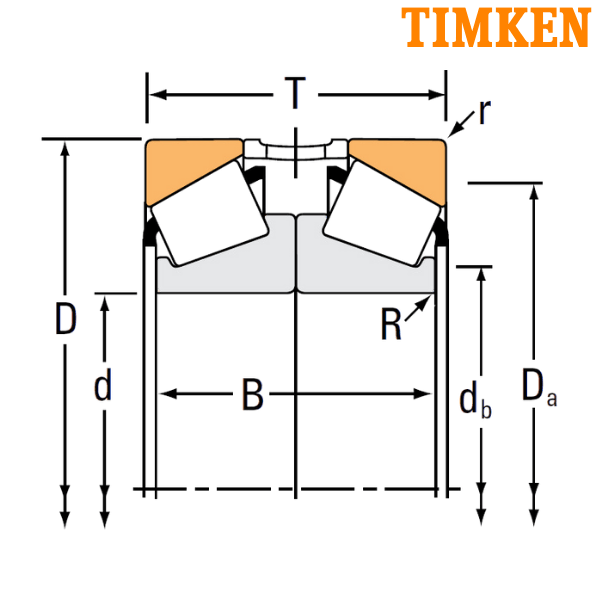

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

** Images are for representation purposes only
