Description
Brand - TIMKEN
Item Number - 9380/9320 TIMKEN
Also Known As - 9380 - 9320
Category - Single Row Tapered Roller Bearing (TS Type)

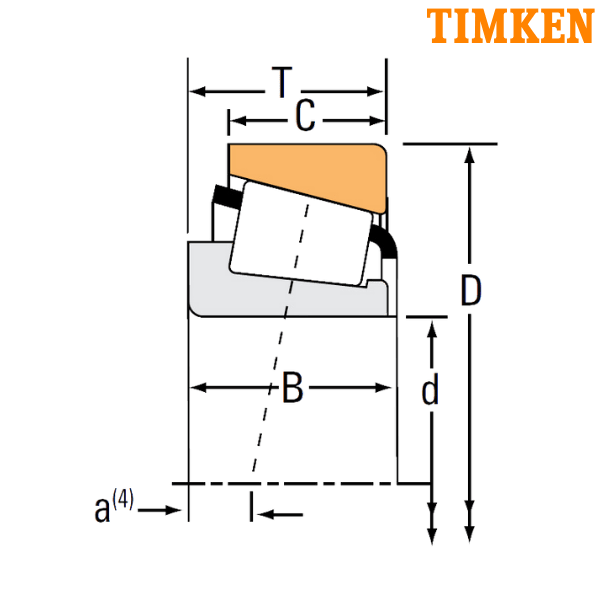

Bore Diameter (d) mm - 76.2
Bore Diameter (d) inch - 3
Outer Diameter (D) mm - 177.8
Outer Diameter (D) inch - 7
Width (T) mm - 52.388
Width (T) inch - 2.0625
Dynamic Load Rating (C1) N - 363000
Dynamic Load Rating (C1) lbf - 81600
Factor (e) - 0.76
Factor (Y) - 0.79
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 94100
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 21200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 123000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 27700
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.76
Basic Static Radial Load Rating (C0) N - 351000
Basic Static Radial Load Rating (C0) lbf - 78800
Cone Width (B) mm - 46.038
Cone Width (B) inch - 1.8125
Cup Width (C) mm - 34.925
Cup Width (C) inch - 1.375
Effective Center Location (a) mm - 4.3
Effective Center Location (a) inch - 0.17

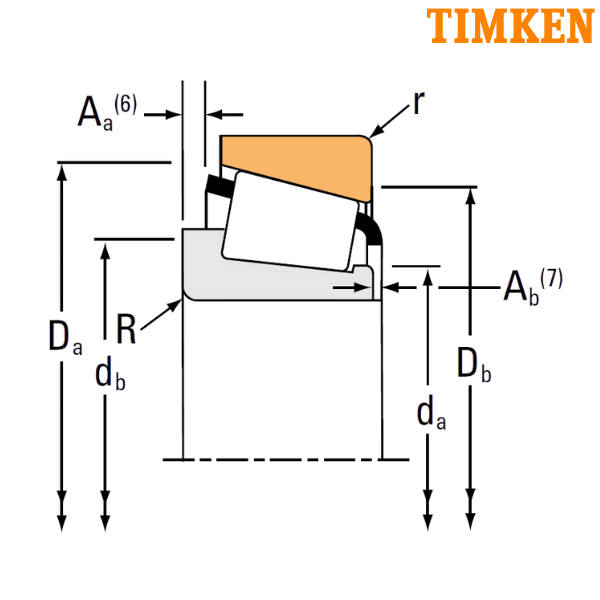

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 98.2
Cone Frontface Backing Diameter (da) inch - 3.87
Cone Backface Backing Diameter (db) mm - 105
Cone Backface Backing Diameter (db) inch - 4.13
Max Housing Fillet Radius (r) mm - 3.3
Max Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 164
Cup Frontface Backing Diameter (Da) inch - 6.46
Cup Backface Backing Diameter (Db) mm - 148
Cup Backface Backing Diameter (Db) inch - 5.83
Cage-Cone Backface Clearance (Aa) mm - 8.9
Cage-Cone Backface Clearance (Aa) inch - 0.35
Cage-Cone Frontface Clearance (Ab) mm - 3.9
Cage-Cone Frontface Clearance (Ab) inch - 0.16
Geometry Factor (G1) - 117.9
Geometry Factor (G2) - 18.6
Geometry Factor (Cg) - 0.1053
Weight (kg) - 5.81
Weight (lbs) - 12.8
Inner Part Number - 9380
Outer Part Number - 9320
TS - Single Row Tapered Roller Bearing

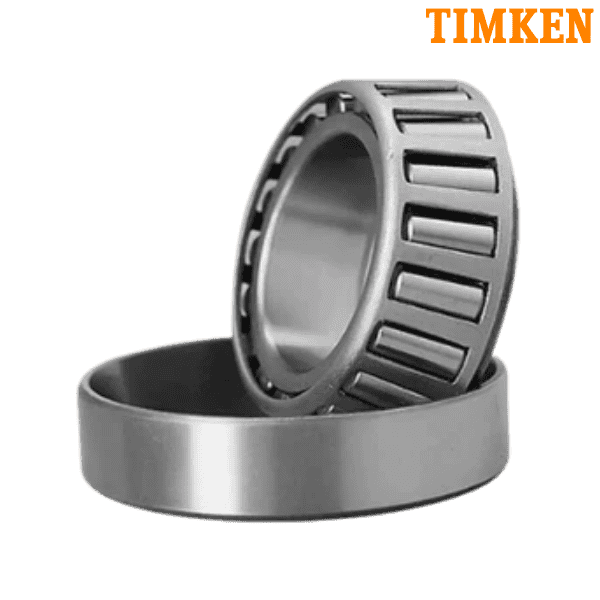

** Images are for representation purposes only
