Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item number - 89472-M FAG

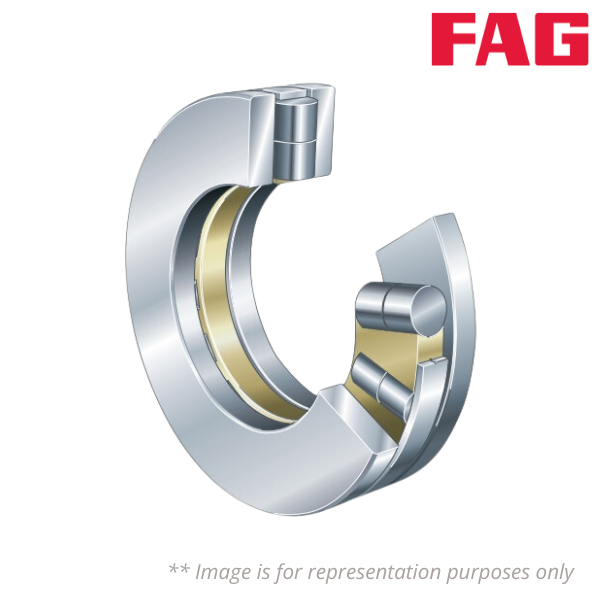

Category - Single Direction Axial Cylindrical Roller Bearing, Double Row
Weight (Kg) - 267

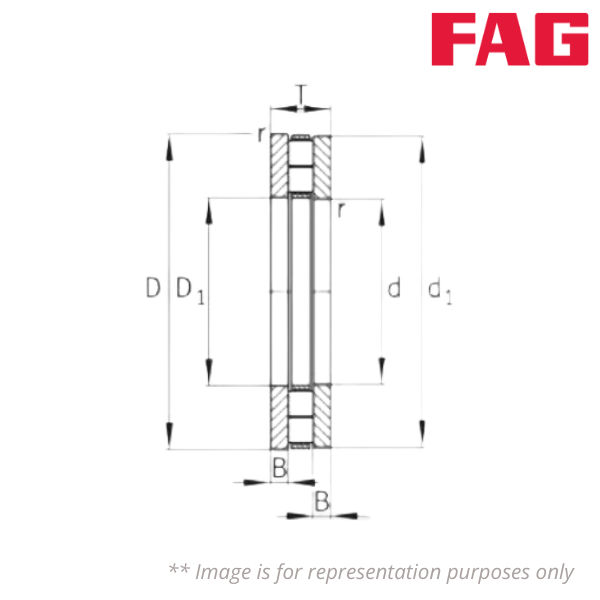

Inner Diameter (d) mm - 360
Outer Diameter (D) mm - 640
Height (T) mm - 170
Inner Width (B) mm - 49
Minimum Chamfer Dimension (r) mm - 7.5
Bore Diameter Housing Washer (D1) mm - 365
Rip Diameter Shaft Washer (d1) mm - 635
Basic Dynamic Load Rating, Axial (Ca) kN - 6500
Basic Static Load Rating, Axial (C0a) kN - 24500
Fatigue Load Limit (Cua) kN - 1720
Limiting Speed (nG) rpm - 570
Reference Speed (nB) rpm - 158
