Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item number - 89460-M FAG

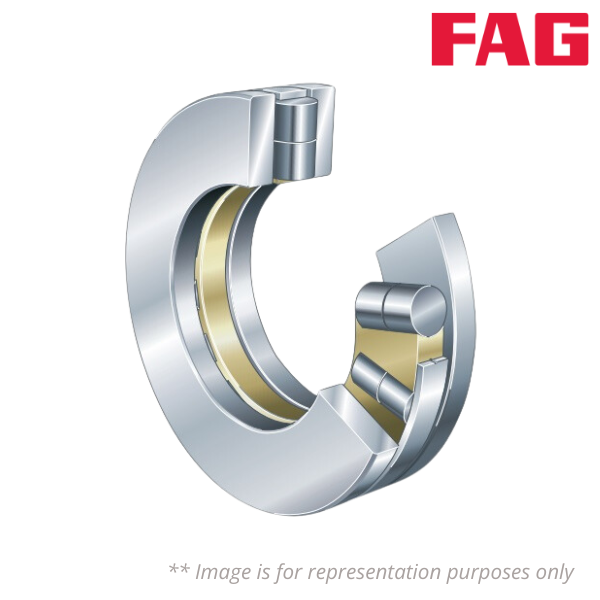

Category - Single Direction Axial Cylindrical Roller Bearing, Double Row
Weight (Kg) - 170

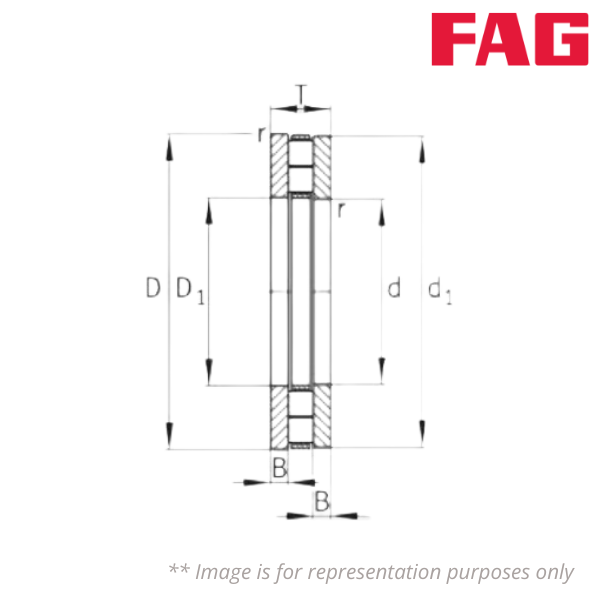

Inner Diameter (d) mm - 300
Outer Diameter (D) mm - 540
Height (T) mm - 145
Inner Width (B) mm - 48.5
Minimum Chamfer Dimension (r) mm - 6
Bore Diameter Housing Washer (D1) mm - 305
Rip Diameter Shaft Washer (d1) mm - 540
Basic Dynamic Load Rating, Axial (Ca) kN - 4350
Basic Static Load Rating, Axial (C0a) kN - 18500
Fatigue Load Limit (Cua) kN - 1480
Limiting Speed (nG) rpm - 670
Reference Speed (nB) rpm - 188
