Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item number - 89456-M FAG

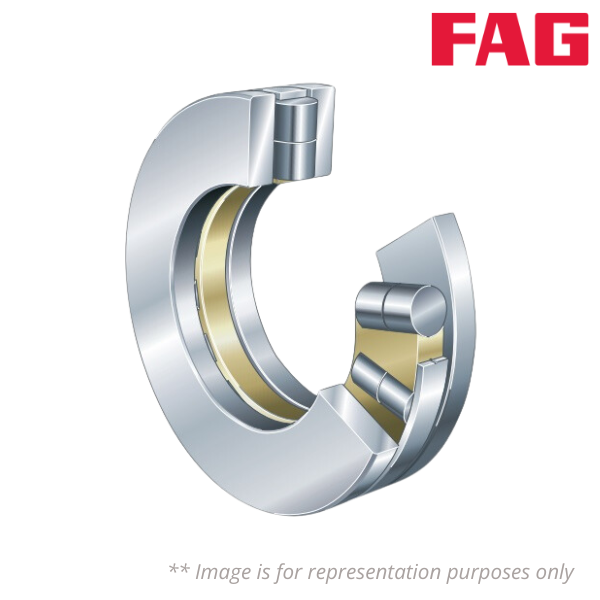

Category - Single Direction Axial Cylindrical Roller Bearing, Double Row
Weight (Kg) - 159

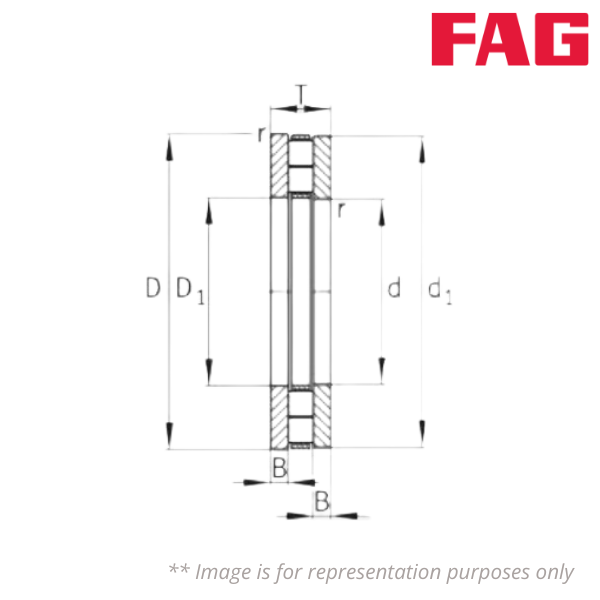

Inner Diameter (d) mm - 280
Outer Diameter (D) mm - 520
Height (T) mm - 145
Inner Width (B) mm - 48.5
Minimum Chamfer Dimension (r) mm - 6
Bore Diameter Housing Washer (D1) mm - 285
Rip Diameter Shaft Washer (d1) mm - 520
Basic Dynamic Load Rating, Axial (Ca) kN - 4250
Basic Static Load Rating, Axial (C0a) kN - 17600
Fatigue Load Limit (Cua) kN - 1420
Limiting Speed (nG) rpm - 700
Reference Speed (nB) rpm - 199
