Description
Brand - ZEN
Item Number - 89309-TN ZEN

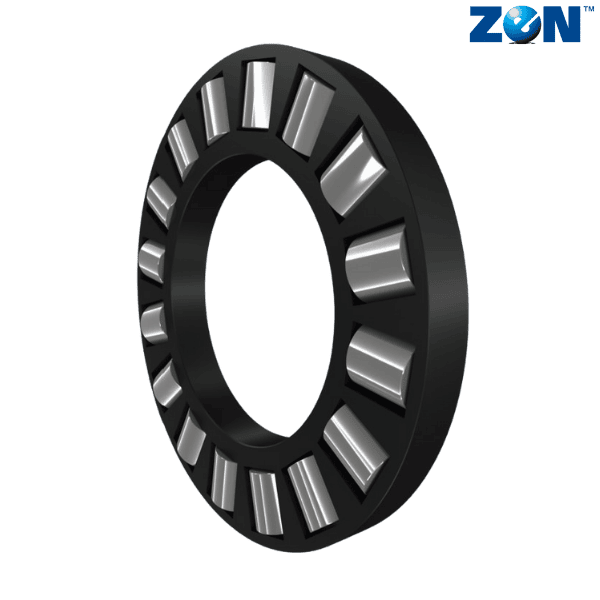

Category - Axial Cylindrical Roller Bearings

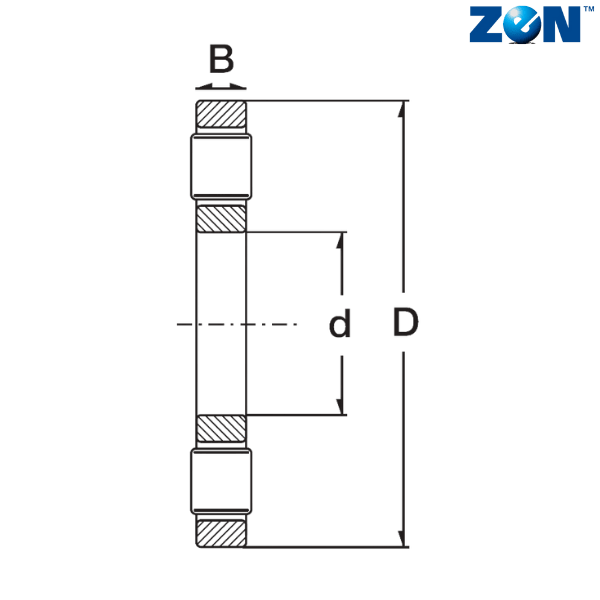

Inner Ring Dimension (d) mm - 45
Outer Ring Dimension (D) mm - 85
Width (B) mm - 7.5
Dimension (T) mm - 24
Weight (kg) - 0.615
Housing Location Washer - GS89309
Shaft Locating Washer - WS89309
Dynamic Load Rating (N) - 139000
Static Load Rating (N) - 445000
Limiting Speed (rpm) - 4450
** Images are for representation purposes only
