88925/88129-B TIMKEN

Brand - TIMKEN
Item Number - 88925/88129-B TIMKEN
Also Known As - 88925 - 88129-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 234.95
Bore Diameter (d) inch - 9.25
Outer Diameter (D) mm - 328.612
Outer Diameter (D) inch - 12.9375
Width (T1) mm - 26.988
Width (T1) inch - 1.0625
Dynamic Load Rating (C1) N - 552000
Dynamic Load Rating (C1) lbf - 124000
Factor (e) - 0.49
Factor (Y) - 1.23
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 143000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 32200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 119000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 26800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.2
Basic Static Radial Load Rating (C0) N - 821000
Basic Static Radial Load Rating (C0) lbf - 185000
Cone Width (B) mm - 49.212
Cone Width (B) inch - 1.9375
Cup Width (C) mm - 34.925
Cup Width (C) inch - 1.375
Effective Center Location (a) mm - 14.2
Effective Center Location (a) inch - 0.56
Outer Diameter of Outer Ring Flange (D1) mm - 339.725
Outer Diameter of Outer Ring Flange (D1) inch - 13.375
Flange Width (C2) mm - 9.525
Flange Width (C2) inch - 0.375
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Frontface Backing Diameter (da) mm - 246
Cone Frontface Backing Diameter (da) inch - 9.69
Cone Backface Backing Diameter (db) mm - 258
Cone Backface Backing Diameter (db) inch - 10.16
Cup Frontface Backing Diameter (Da) mm - 309
Cup Frontface Backing Diameter (Da) inch - 12.17
Geometry Factor (G1) - 800.1
Geometry Factor (G2) - 189.1
Geometry Factor (Cg) - 0.1352
Weight (kg) - 11.83
Weight (lbs) - 26.09
Inner Part Number - 88925
Outer Part Number - 88129-B

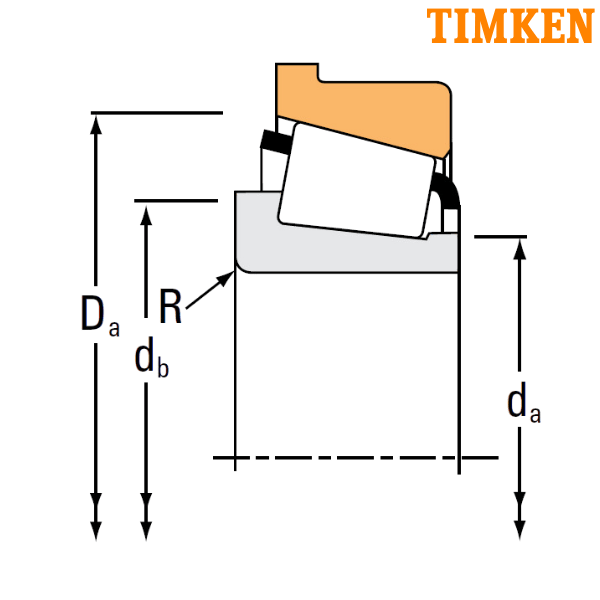

TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
