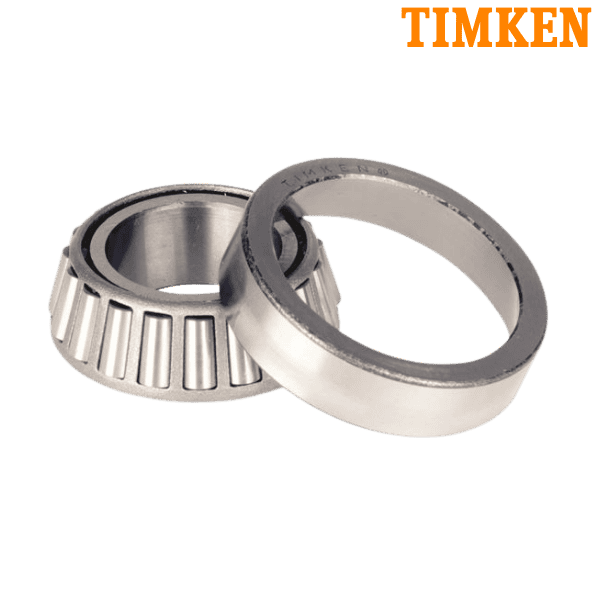

87750-87111 TIMKEN

Brand - TIMKEN
Item Number - 87750-87111 TIMKEN
Category - Precision Tapered Roller Bearing - TS (Tapered Single) Style

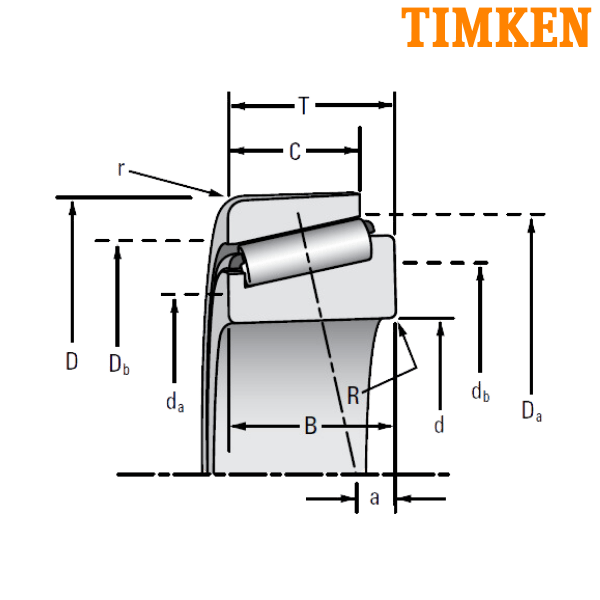

Bore Diameter (d) mm - 190.5
Bore Diameter (d) inch - 7.5
Outer Diameter (D) mm - 282.575
Outer Diameter (D) inch - 11.125
Width (T) mm - 50.8
Width (T) inch - 2
Static Radial Rating (C0) kN - 690
Static Radial Rating (C0) lbs - 155100
Dynamic Radial Rating (1 million revolutions) (C1) kN - 398
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 89400
Dynamic Radial Rating (90 million revolutions) (C90) kN - 103
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 23200
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 73.4
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 16500
Cone Width (B) mm - 47.625
Cone Width (B) inch - 1.875
Cup Width (C) mm - 36.5
Cup Width (C) inch - 1.437
Effective Center Location (a) mm - 3.8
Effective Center Location (a) inch - 0.15
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3.6
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 202.9
Cone Frontface Backing Diameter (da) inch - 7.99
Cone Backface Backing Diameter (db) mm - 209
Cone Backface Backing Diameter (db) inch - 8.23
Maximum Housing Fillet Radius at Cup Backface (r) mm - 3.3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 267
Cup Frontface Backing Diameter (Da) inch - 10.51
Cup Backface Backing Diameter (Db) mm - 261.1
Cup Backface Backing Diameter (Db) inch - 10.28
Stiffness (Kr10^6) N/mm - 4.52
Stiffness (Kr10^6) lbs/in - 25.8
Stiffness (Fr) kN - 10.31
Stiffness (Fr) lbs - 2318
Stiffness (Ka10) N/mm - 0.66
Stiffness (Ka10) lbs/in - 3.77
Stiffness (Fa) kN - 7.32
Stiffness (Fa) lbs - 1646
Speed Rating (RPM) - 1700
Weight (kg) - 9.48
Weight (lbs) - 20.91

** Images are for representation purposes only
