Description
Brand - FAG
Item number - 81296-M FAG

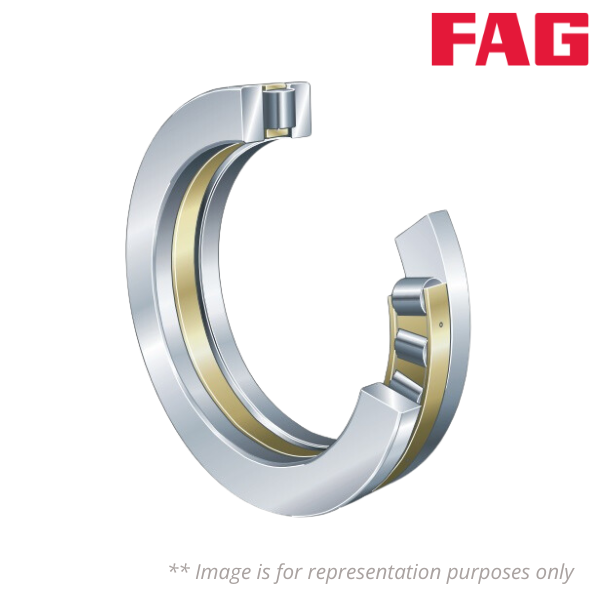

Category - Single Direction Axial Cylindrical Roller Bearing, Single Row
Weight (Kg) - 139

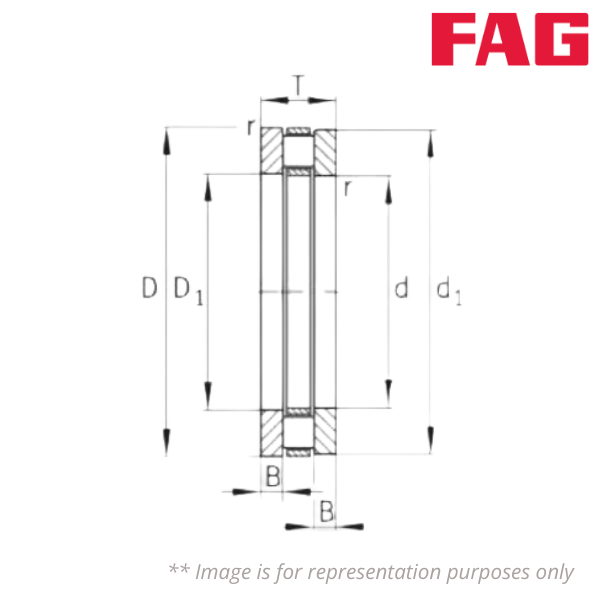

Inner Diameter (d) mm - 480
Outer Diameter (D) mm - 650
Height (T) mm - 135
Inner Width (B) mm - 39.5
Minimum Chamfer Dimension (r) mm - 5
Bore Diameter Housing Washer (D1) mm - 485
Rip Diameter Shaft Washer (d1) mm - 645
Basic Dynamic Load Rating, Axial (Ca) kN - 4150
Basic Static Load Rating, Axial (C0a) kN - 17400
Fatigue Load Limit (Cua) kN - 1200
Limiting Speed (nG) rpm - 500
Reference Speed (nB) rpm - 141
