Description
Brand - INA
Item Number - 81224-TV INA

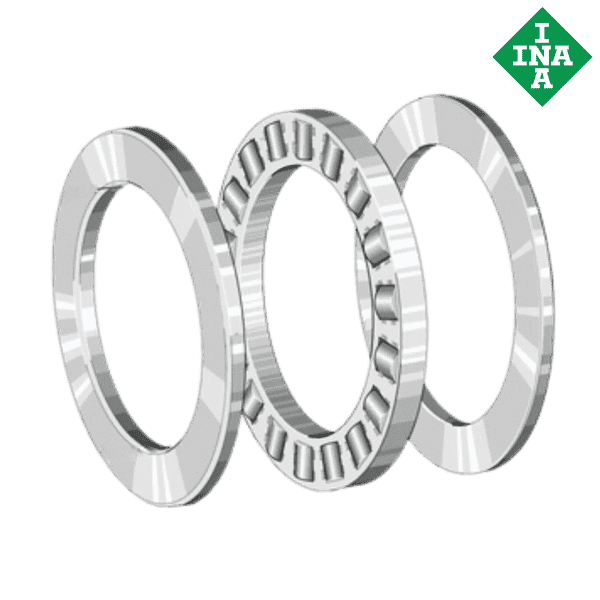

Category - Axial Cylindrical Roller Bearing
Also known as - 568120000
EAN - 4054362005292

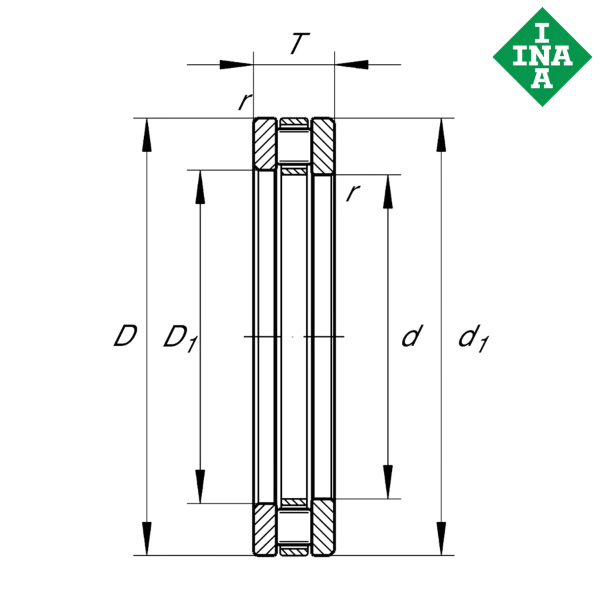

Inner (d) MM - 120
Outer (D) MM - 170
Width (B) MM - 39
Inner (d) Inch - 4.7244
Outer (D) Inch - 6.6929
Width (B) Inch - 1.5354
Weight (kg) - 2.7
Cage Type - P - Plastic Molded Cage
Precision - Standard Precision
** Images are representation purposes only
