Description
Brand - ZEN
Item Number - 81224-M ZEN

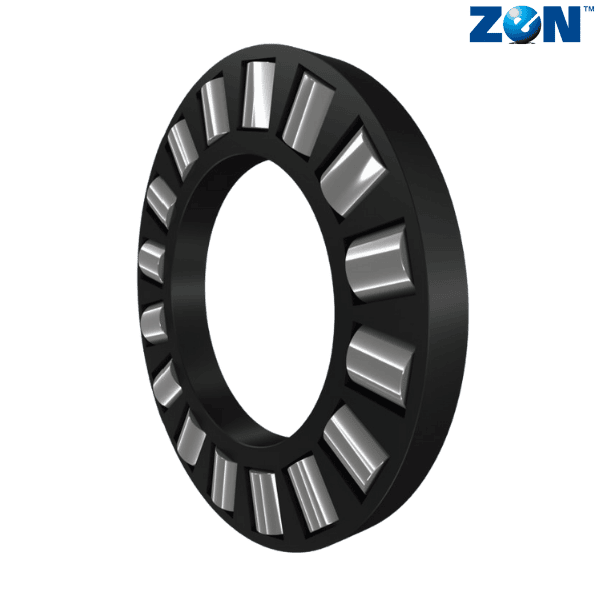

Category - Axial Cylindrical Roller Bearings

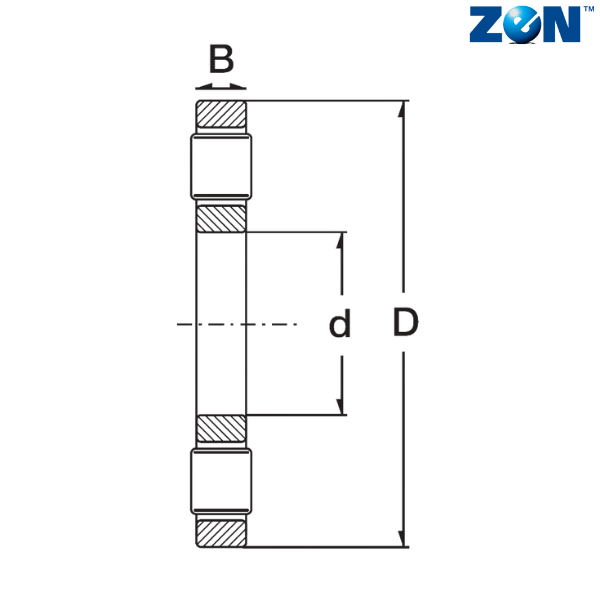

Inner Ring Dimension (d) mm - 120
Outer Ring Dimension (D) mm - 170
Width (B) mm - 15
Dimension (T) mm - 39
Weight (kg) - 2.54
Housing Location Washer - GS81224
Shaft Locating Washer - WS81224
Dynamic Load Rating (N) - 340000
Static Load Rating (N) - 1120000
Limiting Speed (rpm) - 1990
Notes :
M - Brass Cage
** Images are for representation purposes only
