Description
Brand - ZEN
Item Number - 81220-TN ZEN
Category - Axial Cylindrical Roller Bearings

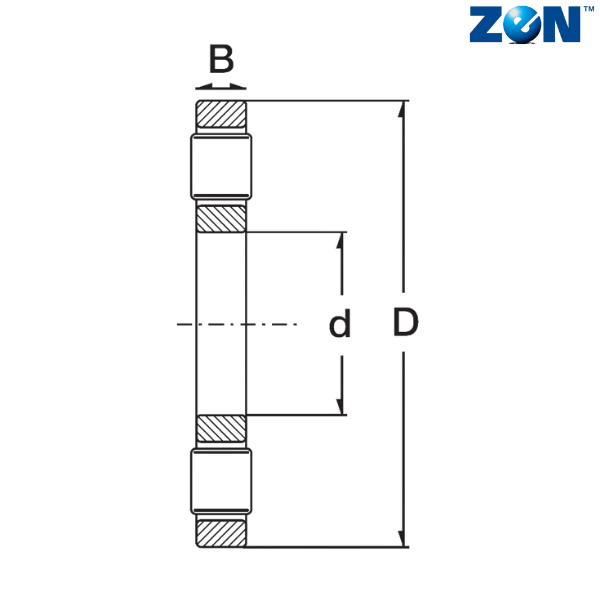

Inner Ring Dimension (d) mm - 100
Outer Ring Dimension (D) mm - 150
Width (B) mm - 15
Dimension (T) mm - 38
Weight (kg) - 2.2
Housing Location Washer - GS81220
Shaft Locating Washer - WS81220
Dynamic Load Rating (N) - 340000
Static Load Rating (N) - 1080000
Limiting Speed (rpm) - 2300

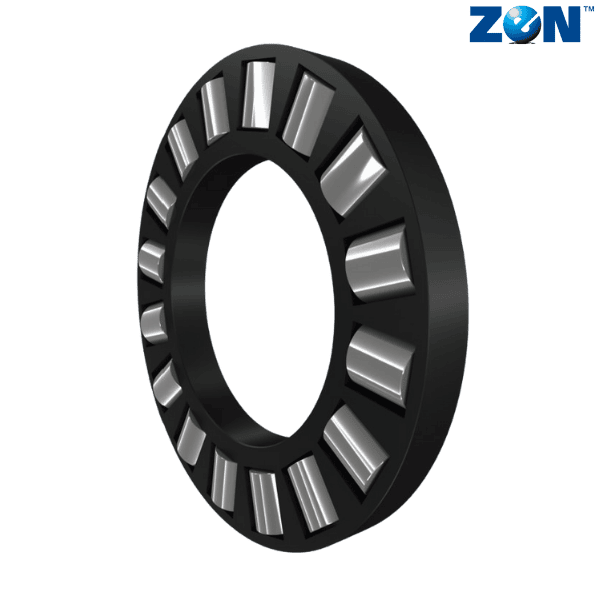

** Images are for representation purposes only
