Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item number - 81168-M FAG

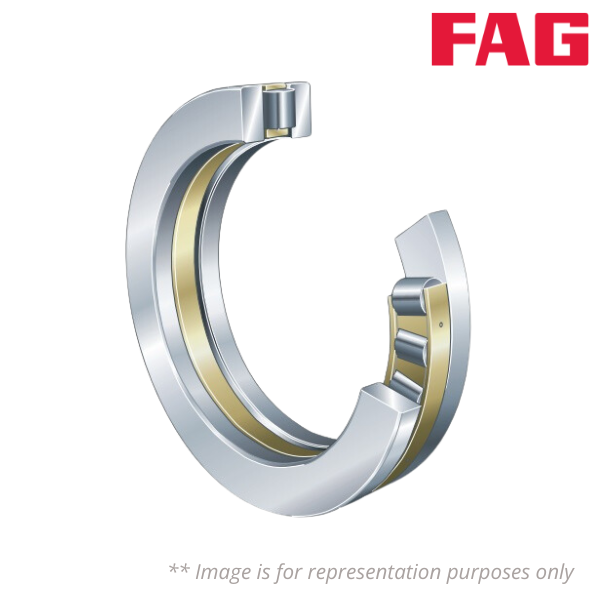

Category - Single Direction Axial Cylindrical Roller Bearing, Single Row
Weight (Kg) - 21.3

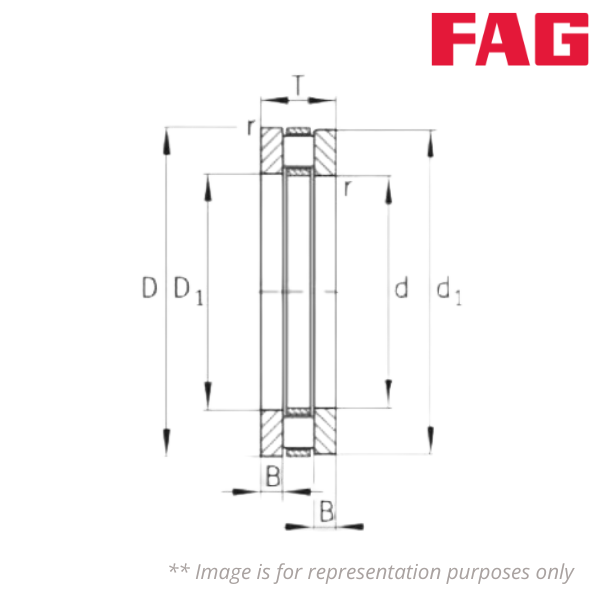

Inner Diameter (d) mm - 340
Outer Diameter (D) mm - 420
Height (T) mm - 64
Inner Width (B) mm - 19.5
Minimum Chamfer Dimension (r) mm - 2
Bore Diameter Housing Washer (D1) mm - 344
Rip Diameter Shaft Washer (d1) mm - 416
Basic Dynamic Load Rating, Axial (Ca) kN - 1130
Basic Static Load Rating, Axial (C0a) kN - 5000
Fatigue Load Limit (Cua) kN - 400
Limiting Speed (nG) rpm - 750
Reference Speed (nB) rpm - 265
