Description
Brand - ZEN
Item Number - 81109-TN ZEN
Category - Axial Cylindrical Roller Bearings

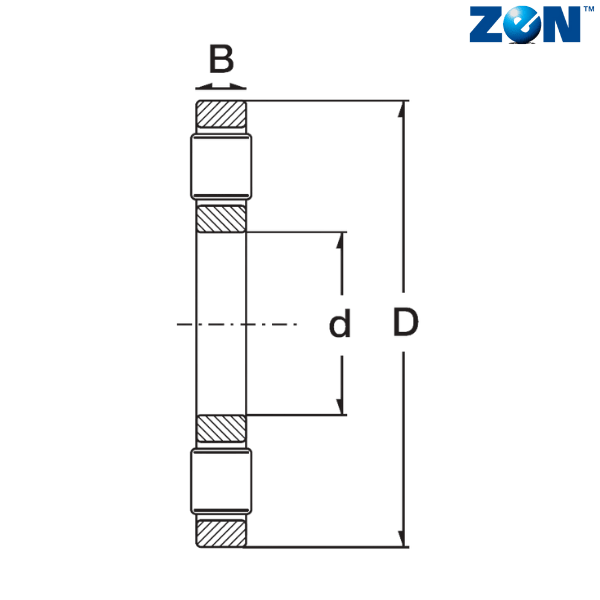

Inner Ring Dimension (d) mm - 45
Outer Ring Dimension (D) mm - 65
Width (B) mm - 6
Dimension (T) mm - 14
Weight (kg) - 0.13
Housing Location Washer - GS81109
Shaft Locating Washer - WS81109
Bearing Washer - LS4565
Dynamic Load Rating (N) - 59000
Static Load Rating (N) - 163000
Limiting Speed (rpm) - 5200

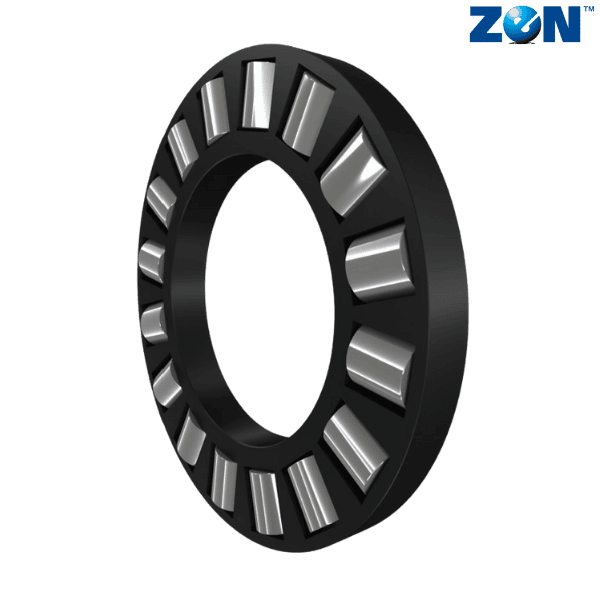

** Images are for representation purposes only
