Description
Brand - ZEN
Item Number - 81103-TN ZEN

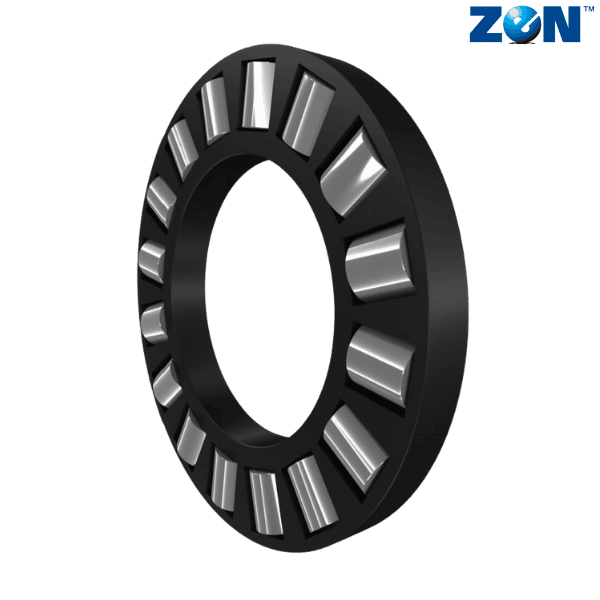

Category - Axial Cylindrical Roller Bearings

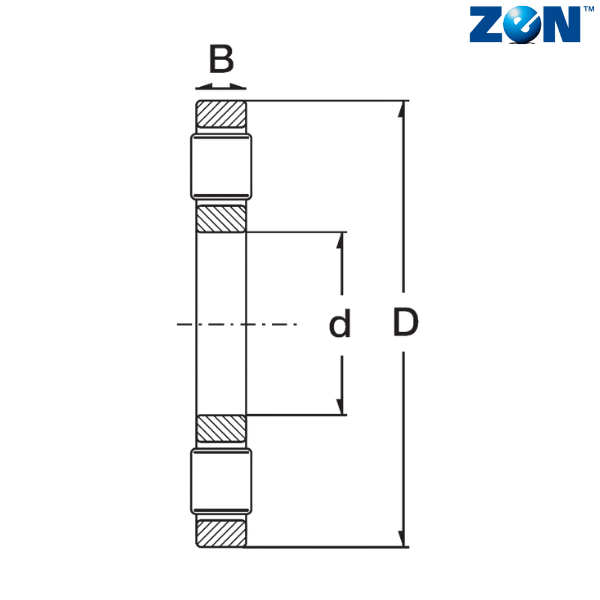

Inner Ring Dimension (d) mm - 17
Outer Ring Dimension (D) mm - 30
Width (B) mm - 3.5
Dimension (T) mm - 9
Weight (kg) - 0.027
Housing Location Washer - GS81103
Shaft Locating Washer - WS81103
Bearing Washer - LS1730
Dynamic Load Rating (N) - 15900
Static Load Rating (N) - 33500
Limiting Speed (rpm) - 12300
** Images are for representation purposes only
