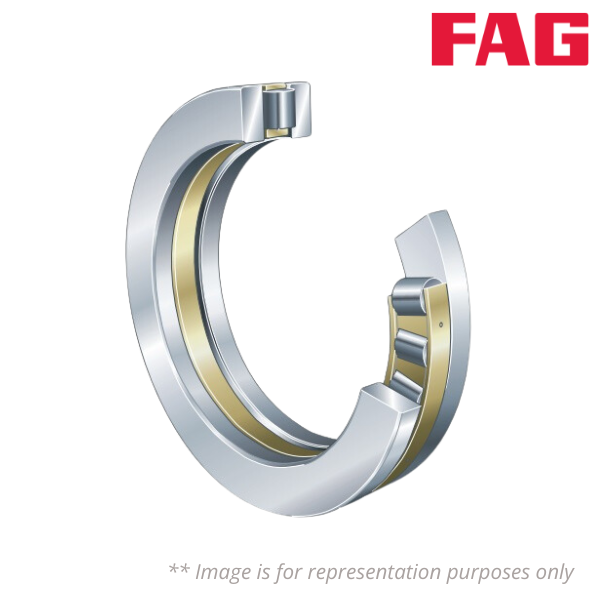

811/900-M FAG


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item number - 811/900-M FAG
Category - Single Direction Axial Cylindrical Roller Bearing, Single Row
Weight (Kg) - 216

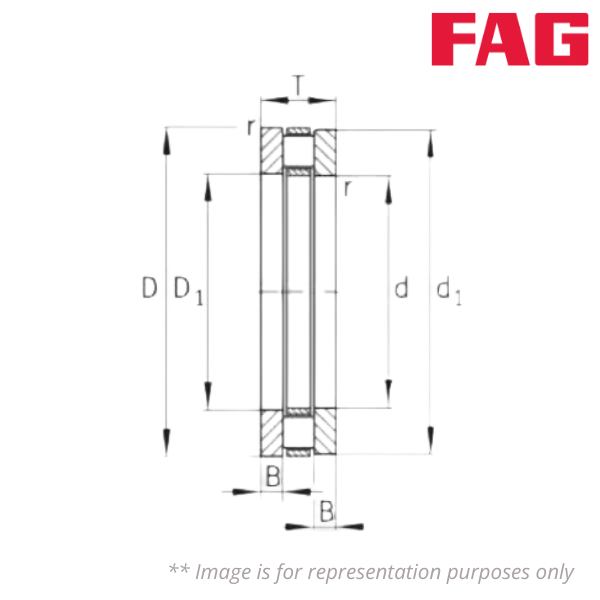

Inner Diameter (d) mm - 900
Outer Diameter (D) mm - 1060
Height (T) mm - 130
Inner Width (B) mm - 39
Minimum Chamfer Dimension (r) mm - 5
Bore Diameter Housing Washer (D1) mm - 905
Rip Diameter Shaft Washer (d1) mm - 1055
Basic Dynamic Load Rating, Axial (Ca) kN - 4600
Basic Static Load Rating, Axial (C0a) kN - 24700
Fatigue Load Limit (Cua) kN - 1450
Limiting Speed (nG) rpm - 295
Reference Speed (nB) rpm - 85
