Description
Brand - NTN

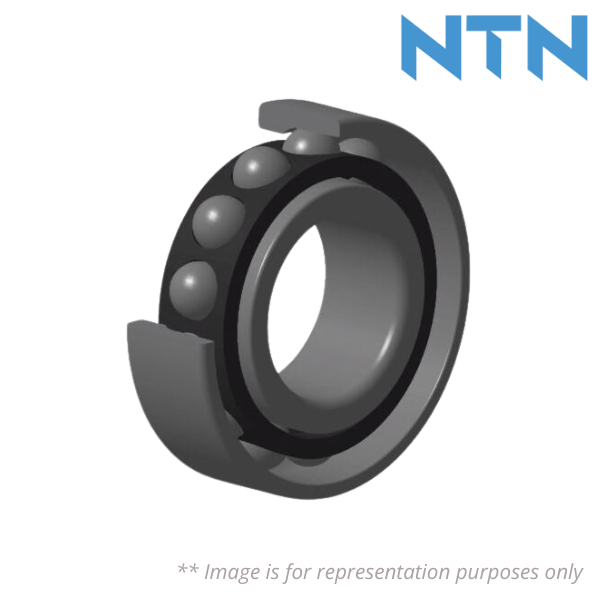

Item Number - 7917UCG/GNP4 NTN
Category - Angular Contact Ball Bearing Single Row
Inner (d) MM - 85
Outer (D) MM - 120
Width (B) MM - 18
Weight (kg) - 0.54
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 15 degrees
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - CB - Normal Axial Clearance
Lubrication - Standard Lubrication
