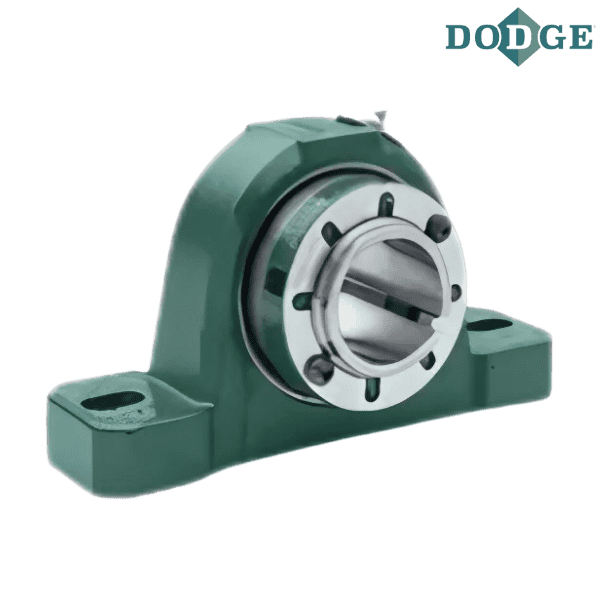

748004 DODGE - P2B528-ISN-415 FR

Brand - DODGE
Item Number - 748004 DODGE - P2B528-ISN-415 FR
Category - ISN Plummer Blocks With Trident Seals (Fixed Bearing)
Series - 528
Shaft Size (inch) - 4.9375
Description - P2B528-ISN-415 FR
Part Number (insert) - 071998
Description (Insert) - ISN 528-22226 FR
Sleeve (Part Number) - 69316
Sleeve (Description) - ADPTR-IP-22226-415

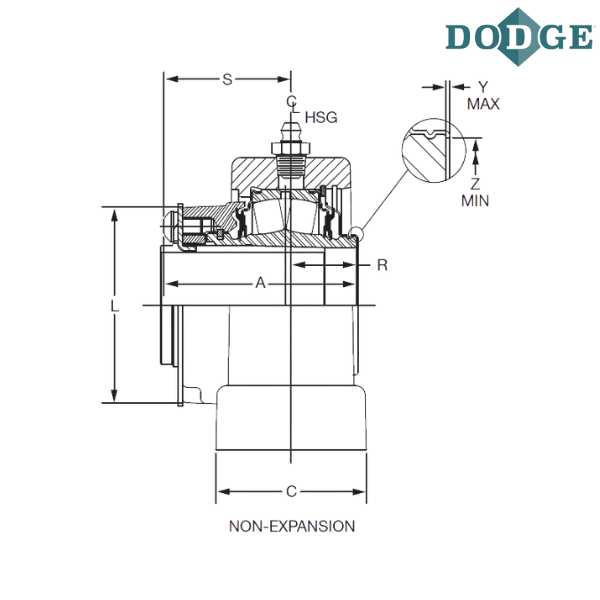

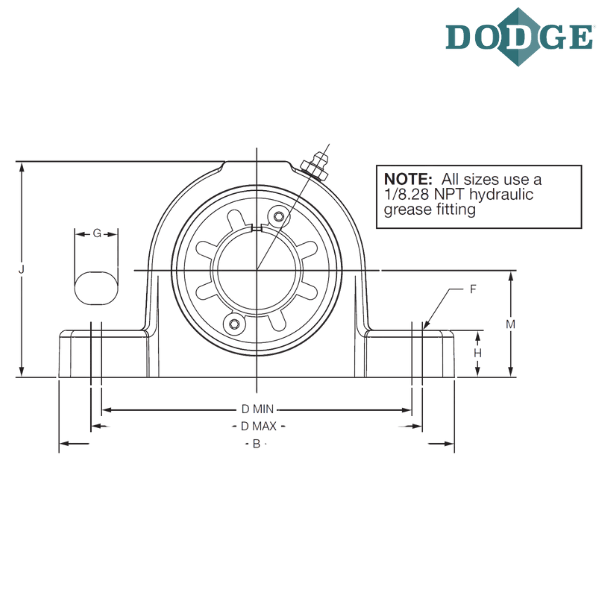

Length Through Bore (A) mm - 152
Overall Length (B) mm - 500
Width (C) mm - 150.2
Bolt to Bolt Minimum Distance (D min) mm - 400
Bolt to Bolt Maximum Distance (D max) mm - 427
F-Bolt Diameter - M30
G (mm) - 48.5
H (mm) - 50
Overall Height (J) mm - 290.4
L (mm) - 191.8
Base to Center Height (M) mm - 150
R (mm) - 48.4
S (mm) - 103.6

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
F - Non-Expansion
R - Trident Rubbing Seal

** Images are for representation purposes only
