748000 DODGE - P2B526-ISN-407 LR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 748000 DODGE - P2B526-ISN-407 LR
Category - ISN Plummer Blocks With Trident Seals (Expansion Bearing)
Series - 526
Shaft Size (inch) - 4.4375
Description - P2B526-ISN-407 LR
Part Number (insert) - 071997
Description (Insert) - ISN 526-22226 FR
Sleeve (Part Number) - 64076
Sleeve (Description) - ADPTR-ISN-22226-407

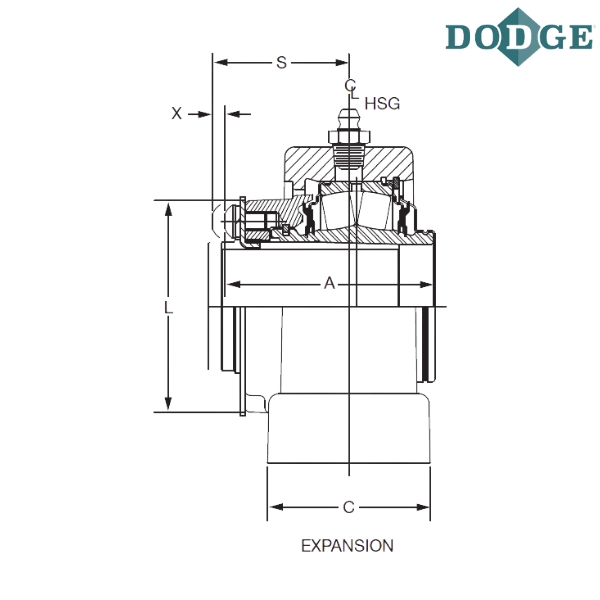

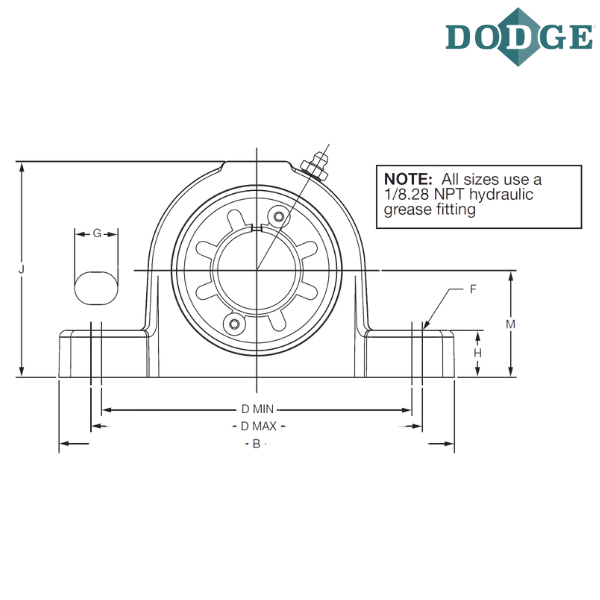

Length Through Bore (A) mm - 152
Overall Length (B) mm - 444.8
Width (C) mm - 130
Bolt to Bolt Minimum Distance (D min) mm - 359.6
Bolt to Bolt Maximum Distance (D max) mm - 387
F-Bolt Diameter - M24
G (mm) - 41.7
H (mm) - 50
Overall Height (J) mm - 292.8
L (mm) - 191.8
Base to Center Height (M) mm - 150
S (mm) - 103.6
Total Expansion (X) mm - 10

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
L - Expansion (Non-Locating)
R - Trident Rubbing Seal

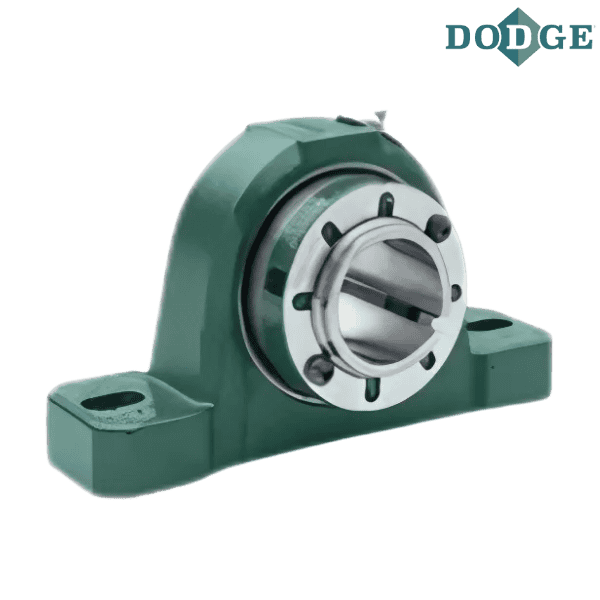

** Images are for representation purposes only
