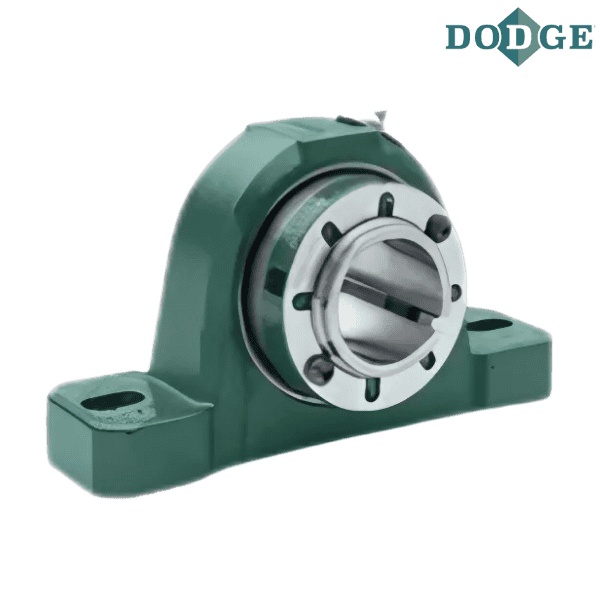

747937 DODGE - P2B511-ISN-200 LR

Brand - DODGE
Item Number - 747937 DODGE - P2B511-ISN-200 LR
Category - ISN Plummer Blocks With Trident Seals (Expansion Bearing)
Series - 511
Shaft Size (inch) - 2
Description - P2B511-ISN-200 LR
Part Number (insert) - 071987
Description (Insert) - ISN 511-22210 FR
Sleeve (Part Number) - 69297
Sleeve (Description) - ADPTR-IP-22210-200

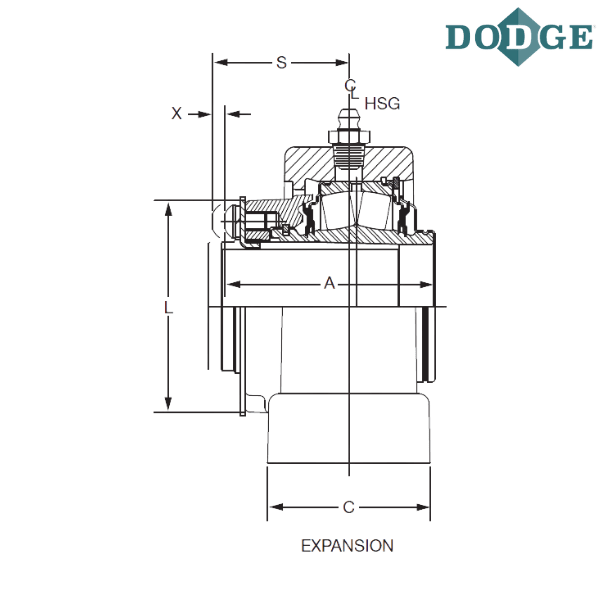

Length Through Bore (A) mm - 72.6
Overall Length (B) mm - 253.9
Width (C) mm - 70.2
Bolt to Bolt Minimum Distance (D min) mm - 190
Bolt to Bolt Maximum Distance (D max) mm - 215.9
F-Bolt Diameter - M16
G (mm) - 31
H (mm) - 28
Overall Height (J) mm - 124.5
L (mm) - 81
Base to Center Height (M) mm - 70
S (mm) - 50.8
Total Expansion (X) mm - 6.5

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
L - Expansion (Non-Locating)
R - Trident Rubbing Seal

** Images are for representation purposes only
