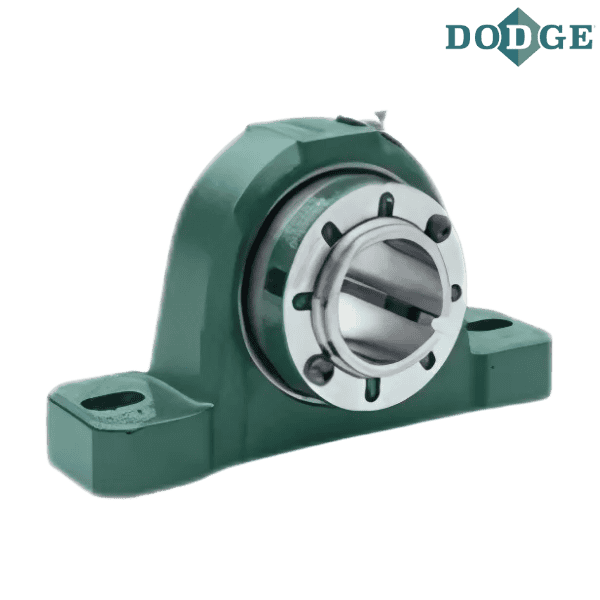

747932 DODGE - P2B511-ISN-115 FR

Brand - DODGE
Item Number - 747932 DODGE - P2B511-ISN-115 FR
Category - ISN Plummer Blocks With Trident Seals (Fixed Bearing)
Series - 511
Shaft Size (inch) - 1.9375
Description - P2B511-ISN-115 FR
Part Number (insert) - 071987
Description (Insert) - ISN 511-22210 FR
Sleeve (Part Number) - 69296
Sleeve (Description) - ADPTR-IP-22210-115

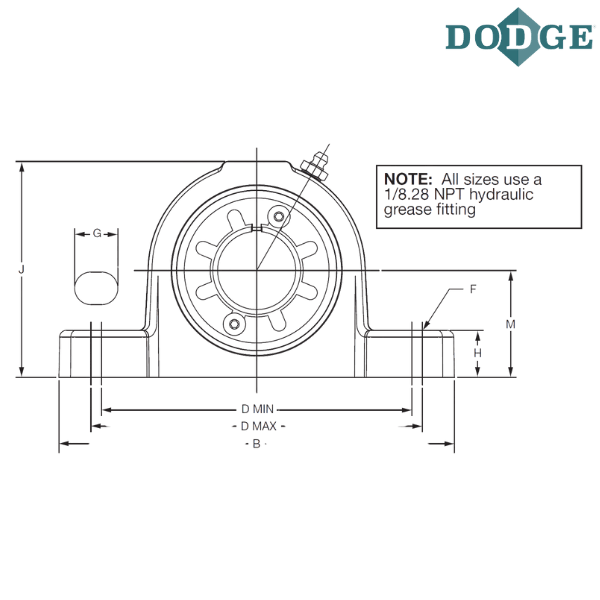

Length Through Bore (A) mm - 72.6
Overall Length (B) mm - 253.9
Width (C) mm - 70.2
Bolt to Bolt Minimum Distance (D min) mm - 190
Bolt to Bolt Maximum Distance (D max) mm - 215.9
F-Bolt Diameter - M16
G (mm) - 31
H (mm) - 28
Overall Height (J) mm - 124.5
L (mm) - 81
Base to Center Height (M) mm - 70
R (mm) - 21.8
S (mm) - 50.8

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
F - Non-Expansion
R - Trident Rubbing Seal

** Images are for representation purposes only
