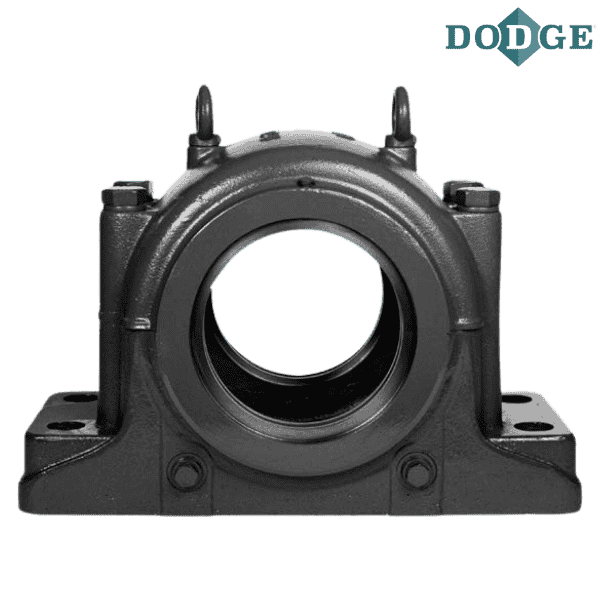

747630 DODGE - SDXD 3056

Brand - DODGE
Item Number - 747630 DODGE - SDXD 3056
Category - SDXD 3000 (Plummer Blocks for bearings 23000K)
Description - SDXD 3056
Labyrinth Seal Item Number - 747670 DODGE - TS-23056
Triple-Tect Seal Item Number - 747710 DODGE - TT-23056
End Cover Item Number - 747754 DODGE - EC-SDX3056
Spherical Roller Bearing Item Number - 420030 DODGE - 23056K.M.C3
Fixing Ring Item Number - 747167 DODGE - SR 420x30
Fixing Ring Quantity - 2
Adapter Item Number - 719443 DODGE - H 3056
Weight (kg) - 250

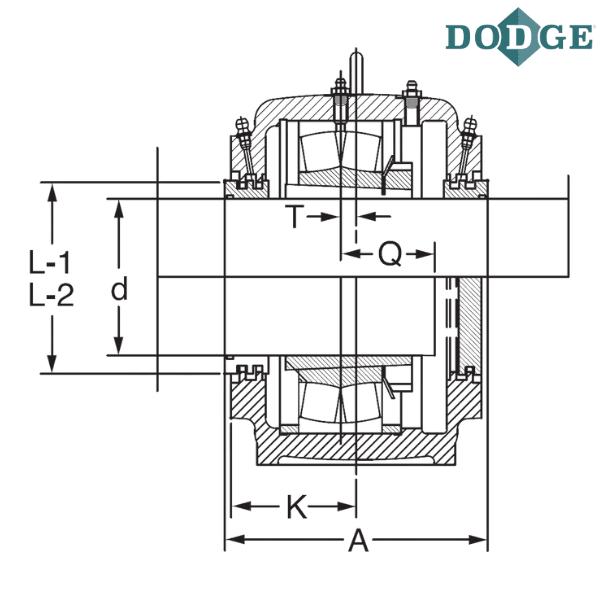

Shaft Diamter (d) mm - 260

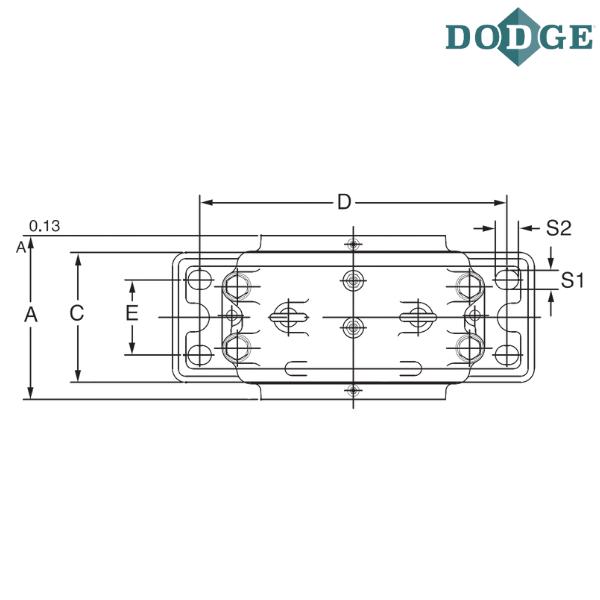

A (mm) - 320

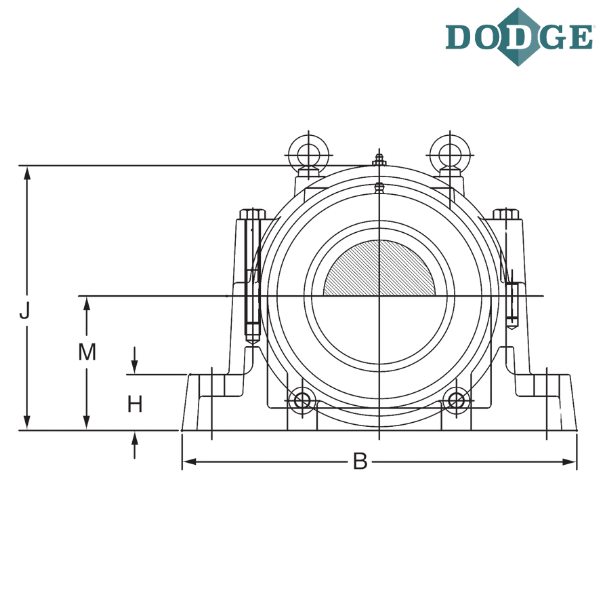

Overall Length (B) mm - 770
C (mm) - 280
H (mm) - 100
Bolt Center to Center Length (D) mm - 650
E (mm) - 160
Overall Height (J) mm - 515
Base to Center Height (M) mm - 260
K (mm) - 160
Bolt Size (S) mm - 36
S1 (mm) - 42
S2 (mm) - 50
Q (mm) - 102
T (mm) - 13
A (With End Cover DK) mm - 320
A (With TS Seal) mm - 328
A (With TT Seal) mm - 333
L1 (TS Seal) mm - 295
L2 (TT Seal) mm - 310

** Images are for representation purposes only
