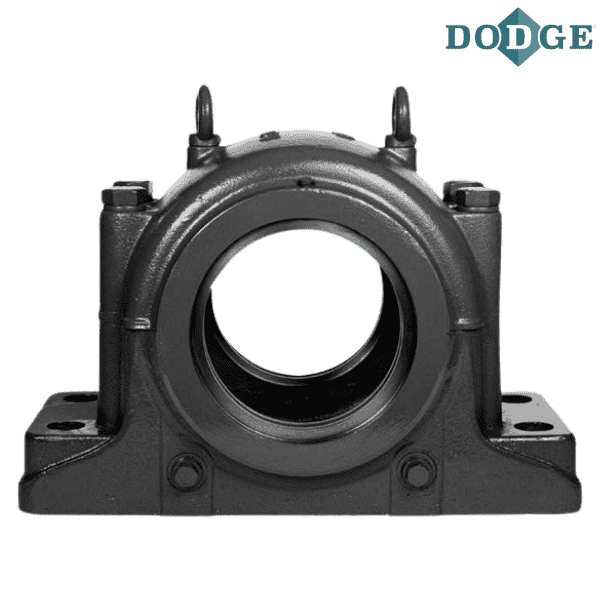

747629 DODGE - SDXD 3052

Brand - DODGE
Item Number - 747629 DODGE - SDXD 3052
Category - SDXD 3000 (Plummer Blocks for bearings 23000K)
Description - SDXD 3052
Labyrinth Seal Item Number - 747669 DODGE - TS-23052
Triple-Tect Seal Item Number - 747709 DODGE - TT-23052
End Cover Item Number - 747753 DODGE - EC-SDX3148/3152/3052
Spherical Roller Bearing Item Number - 703725 DODGE - 23052K.C3
Fixing Ring Item Number - 747166 DODGE - SR 400x22
Fixing Ring Quantity - 2
Adapter Item Number - 719441 DODGE - H 3052
Weight (kg) - 215

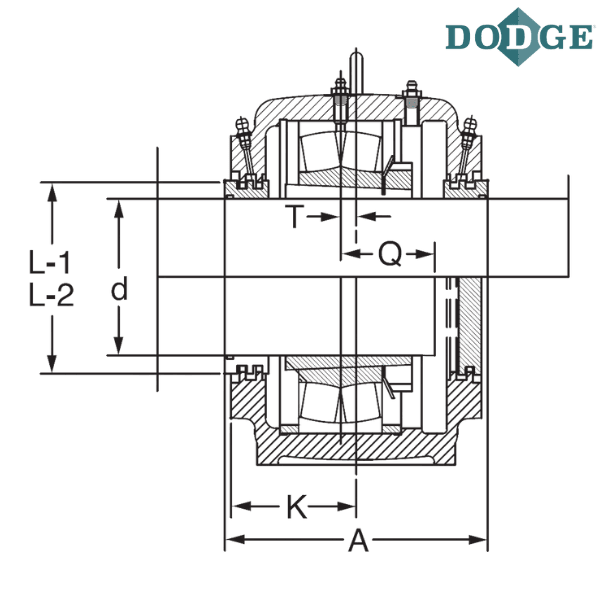

Shaft Diamter (d) mm - 240

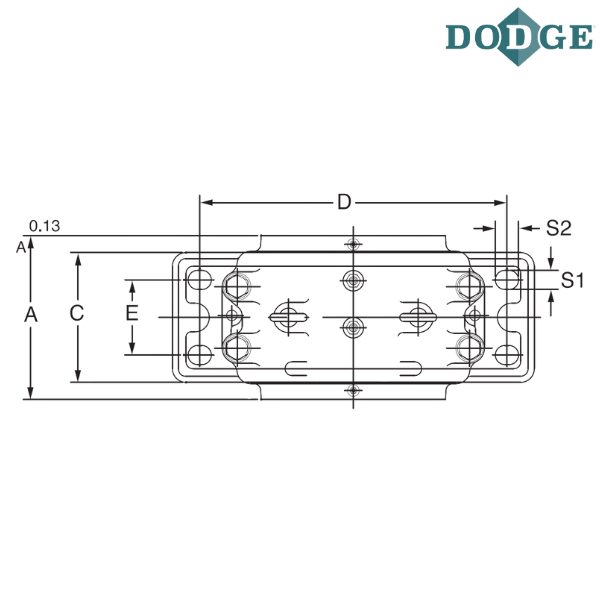

A (mm) - 310

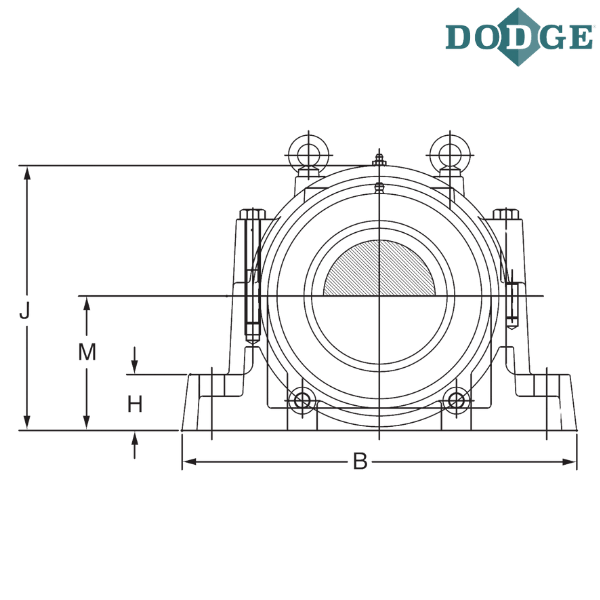

Overall Length (B) mm - 700
C (mm) - 260
H (mm) - 95
Bolt Center to Center Length (D) mm - 600
E (mm) - 150
Overall Height (J) mm - 475
Base to Center Height (M) mm - 240
K (mm) - 155
Bolt Size (S) mm - 30
S1 (mm) - 35
S2 (mm) - 42
Q (mm) - 97
T (mm) - 12
A (With End Cover DK) mm - 310
A (With TS Seal) mm - 318
A (With TT Seal) mm - 323
L1 (TS Seal) mm - 275
L2 (TT Seal) mm - 290

** Images are for representation purposes only
