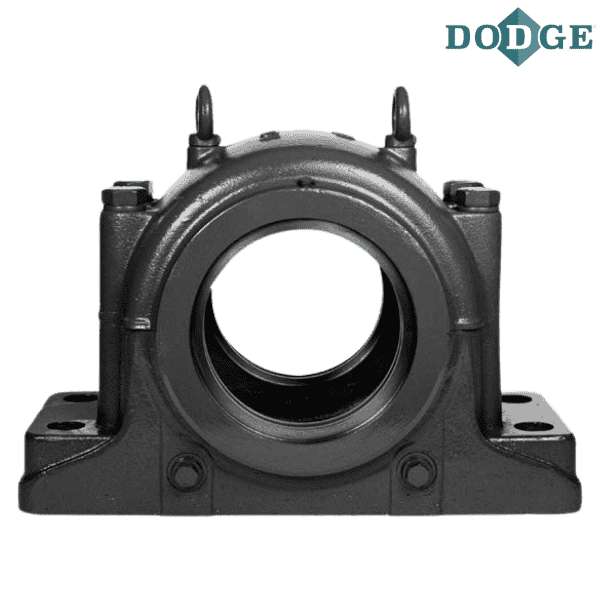

747628 DODGE - SDXD 3144

Brand - DODGE
Item Number - 747628 DODGE - SDXD 3144
Category - SDXD 3100 (Plummer Blocks for bearings 23100K)
Description - SDXD 3144
Labyrinth Seal Item Number - 747667 DODGE - TS-23044
Triple-Tect Seal Item Number - 747707 DODGE - TT-23044
End Cover Item Number - 747750 DODGE - EC-SDX3140/3144/3044
Spherical Roller Bearing Item Number - 703866 DODGE - 23144BK.MB.C3
Fixing Ring Item Number - 747162 DODGE - SR 370x10
Fixing Ring Quantity - 2
Adapter Item Number - 046237 DODGE - H 3144
Weight (kg) - 135

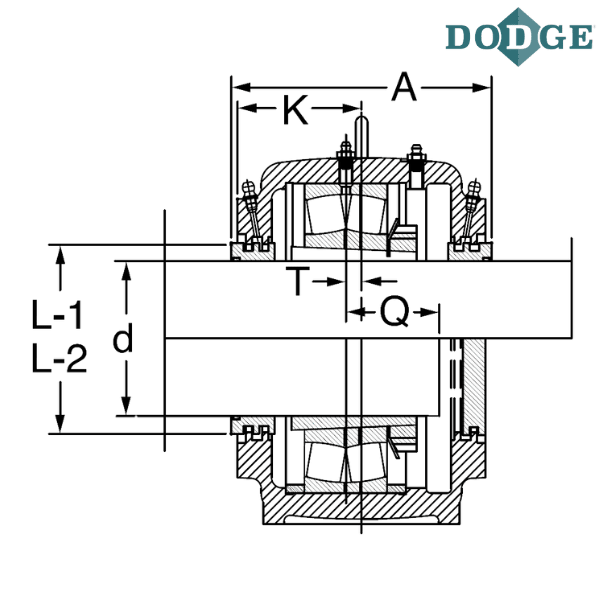

Shaft Diamter (d) mm - 200
A (mm) - 290

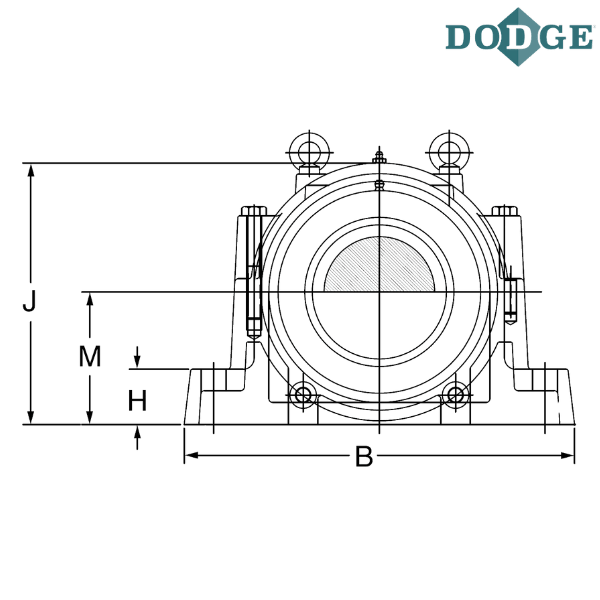

Overall Length (B) mm - 640

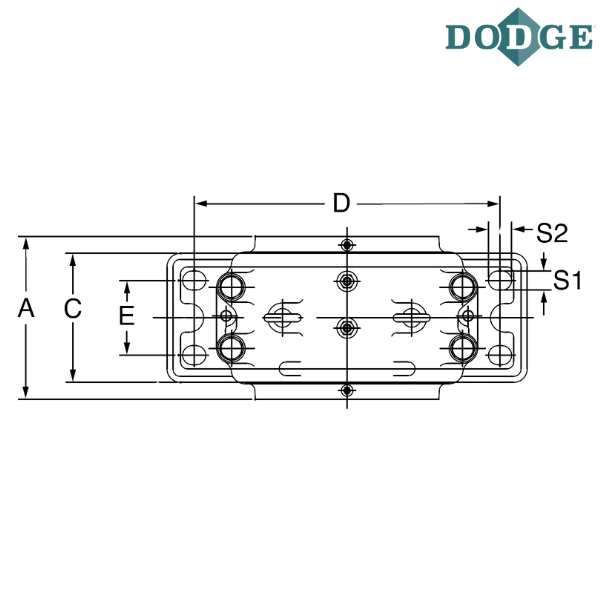

C (mm) - 240
H (mm) - 90
Bolt Center to Center Length (D) mm - 540
E (mm) - 140
Overall Height (J) mm - 435
Base to Center Height (M) mm - 220
K (mm) - 145
Bolt Size (S) mm - 30
S1 (mm) - 35
S2 (mm) - 42
Q (mm) - 95
T (mm) - 12
A (With End Cover DK) mm - 290
A (With TS Seal) mm - 314
A (With TT Seal) mm - 339
L1 (TS Seal) mm - 235
L2 (TT Seal) mm - 250

** Images are for representation purposes only
