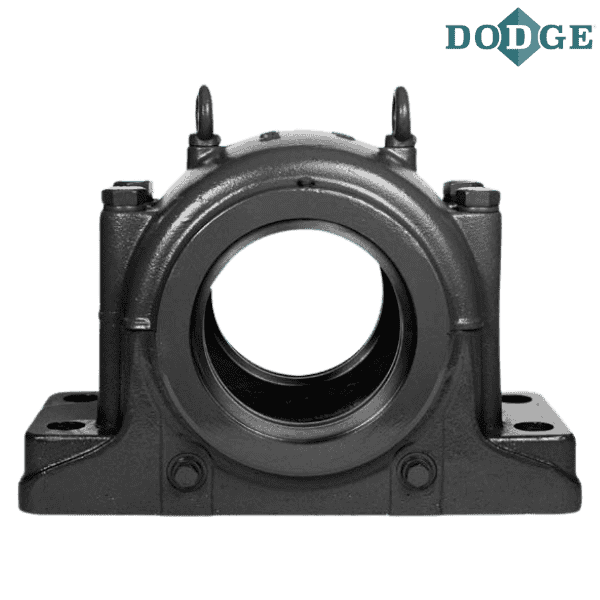

747614 DODGE - SDX 3164

Brand - DODGE
Item Number - 747614 DODGE - SDX 3164
Category - SDX 3100 (Plummer Blocks for bearings 23100K)
Description - SDX 3164
Labyrinth Seal Item Number - 747690 DODGE - TS-23164
Triple-Tect Seal Item Number - 747730 DODGE - TT-23164
End Cover Item Number - 747760 DODGE - EC-SDX3164
Spherical Roller Bearing Item Number - 421287 DODGE - 23164K.MB.C3
Fixing Ring Item Number - 747175 DODGE - SR 540x10
Fixing Ring Quantity - 2
Adapter Item Number - 719492 DODGE - H 3164
Weight (kg) - 330

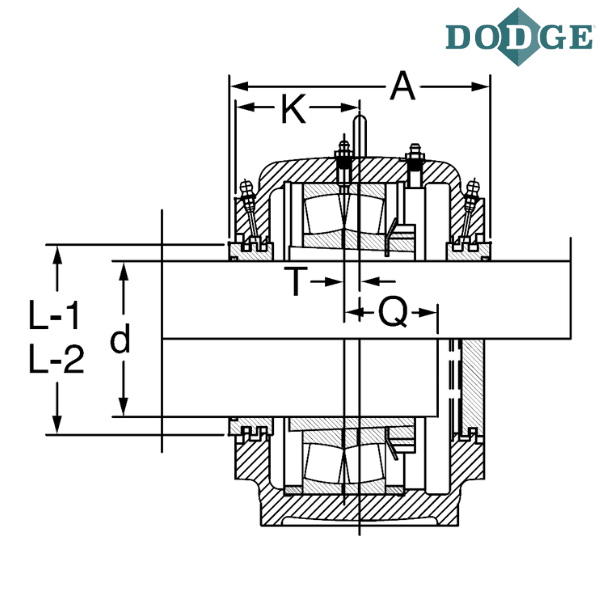

Shaft Diameter (d) mm - 300

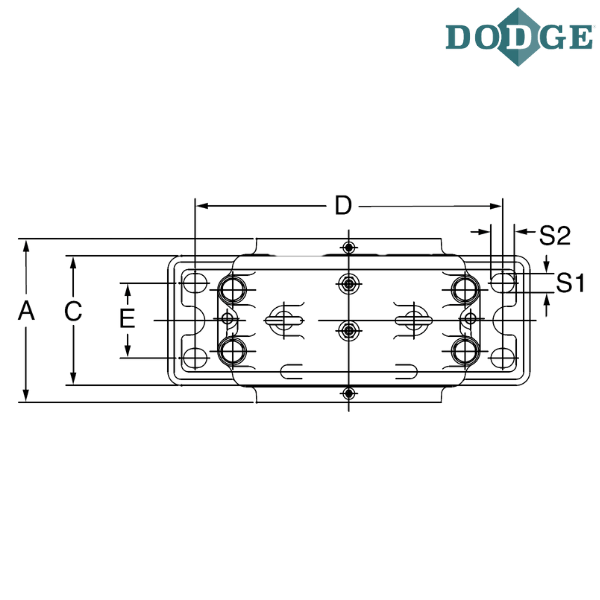

A (mm) - 370

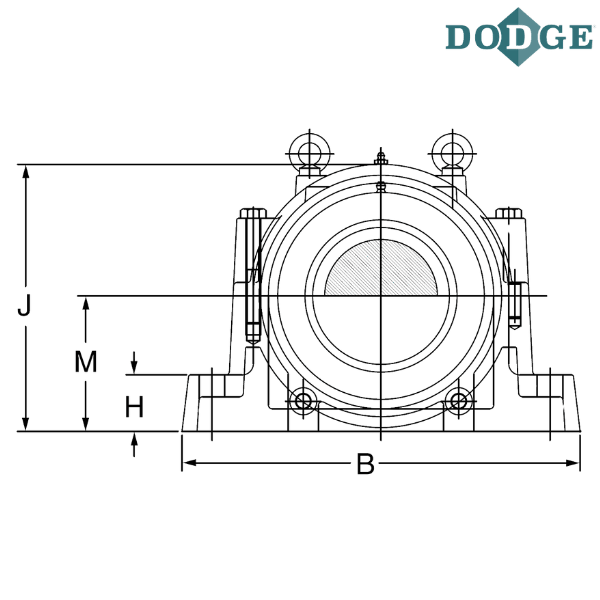

Overall Length (B) mm - 880
C (mm) - 330
H (mm) - 115
Bolt Center to Center Length (D) mm - 750
E (mm) - 200
Overall Height (J) mm - 630
Base to Center Height (M) mm - 320
K (mm) - 185
Bolt Size (S) mm - 36
S1 (mm) - 42
S2 (mm) - 50
Q (mm) - 130
T (mm) - 23
A (With DK End Cover) mm - 370
A (With TS Seal) mm - 394
A (With TT Seal) mm - 399
L1 (TS Seal) mm - 375
L2 (TT Seal) mm - 390

Notes :
SDX - Plummer Block to 320 mm

** Images are for representation purposes only
