747610 DODGE - SDX 3156

Brand - DODGE
Item Number - 747610 DODGE - SDX 3156
Category - SDX 3100 (Plummer Blocks for bearings 23100K)
Description - SDX 3156
Labyrinth Seal Item Number - 747688 DODGE - TS-23156
Triple-Tect Seal Item Number - 747728 DODGE - TT-23156
End Cover Item Number - 747756 DODGE - EC-SDX3156/3160/3060
Spherical Roller Bearing Item Number - 703892 DODGE - 23156BK.MB.C3
Fixing Ring Item Number - 747170 DODGE - SR 460x10
Fixing Ring Quantity - 2
Adapter Item Number - 719489 DODGE - H 3156
Weight (kg) - 250
Shaft Diameter (d) mm - 260

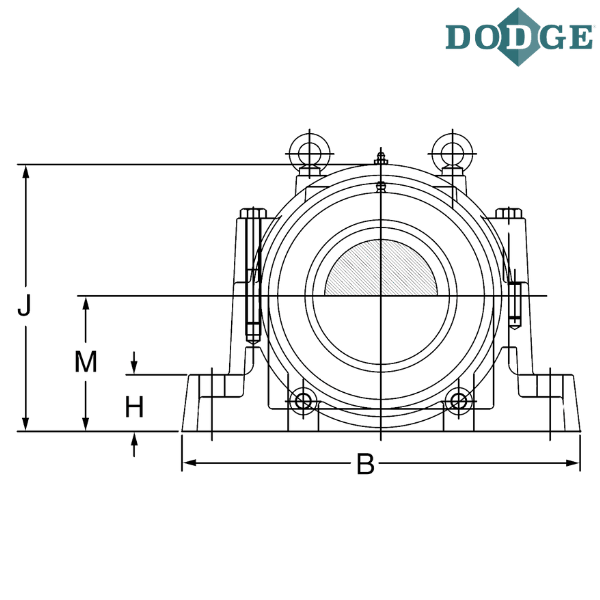

A (mm) - 320
Overall Length (B) mm - 790
C (mm) - 280
H (mm) - 105

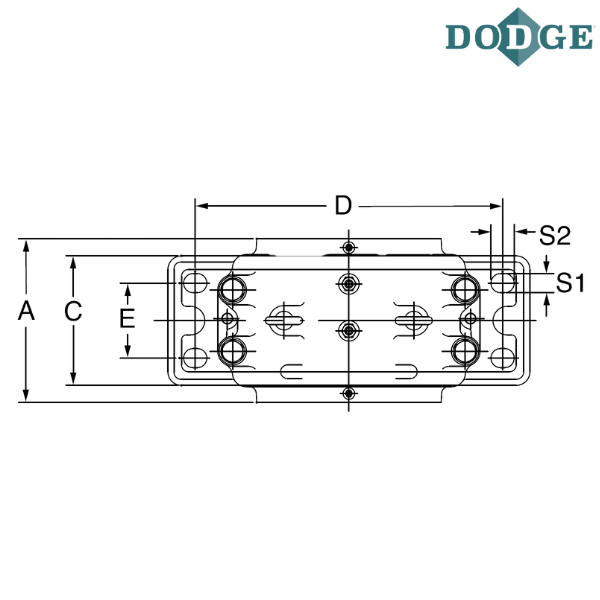

Bolt Center to Center Length (D) mm - 670
E (mm) - 160
Overall Height (J) mm - 550
Base to Center Height (M) mm - 280
K (mm) - 160
Bolt Size (S) mm - 36
S1 (mm) - 42
S2 (mm) - 50
Q (mm) - 114
T (mm) - 16

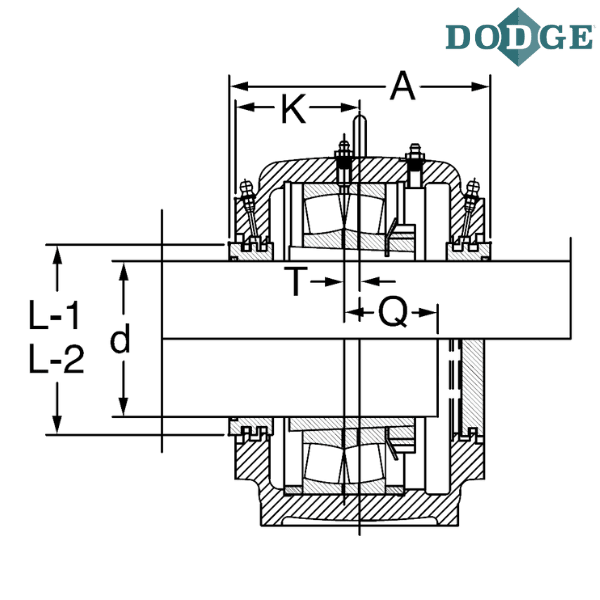

A (With DK End Cover) mm - 320
A (With TS Seal) mm - 344
A (With TT Seal) mm - 349
L1 (TS Seal) mm - 315
L2 (TT Seal) mm - 330

Notes :
SDX - Plummer Block to 320 mm

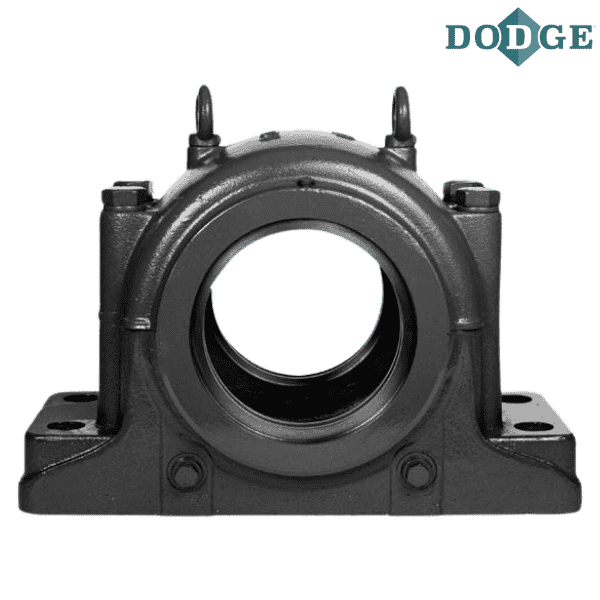

** Images are for representation purposes only
