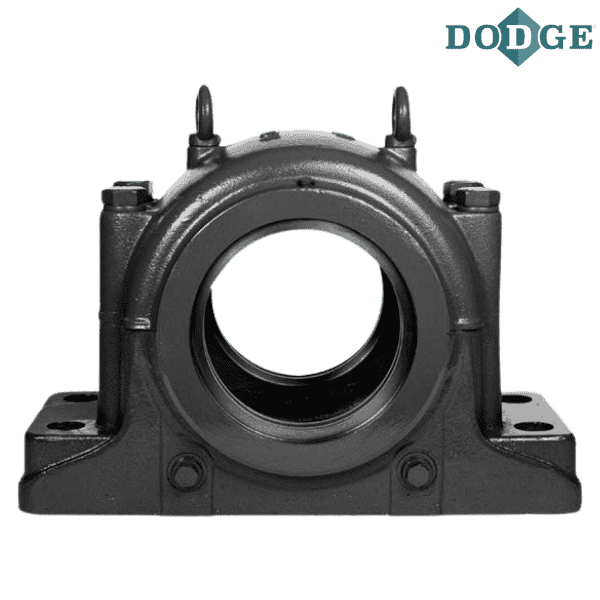

747605 DODGE - SDX 3048

Brand - DODGE
Item Number - 747605 DODGE - SDX 3048
Category - SDX 3000 (Plummer Blocks for bearings 23000K)
Description - SDX 3048
Labyrinth Seal Item Number - 747668 DODGE - TS-23048
Triple-Tect Seal Item Number - 747708 DODGE - TT-23048
End Cover Item Number - 747751 DODGE - EC-SDX3048
Spherical Roller Bearing Item Number - 422031 DODGE - 23048K.MB.C3
Fixing Ring Item Number - 747161 DODGE - SR 360x24
Fixing Ring Quantity - 2
Adapter Item Number - 719437 DODGE - H 3048
Weight (kg) - 180

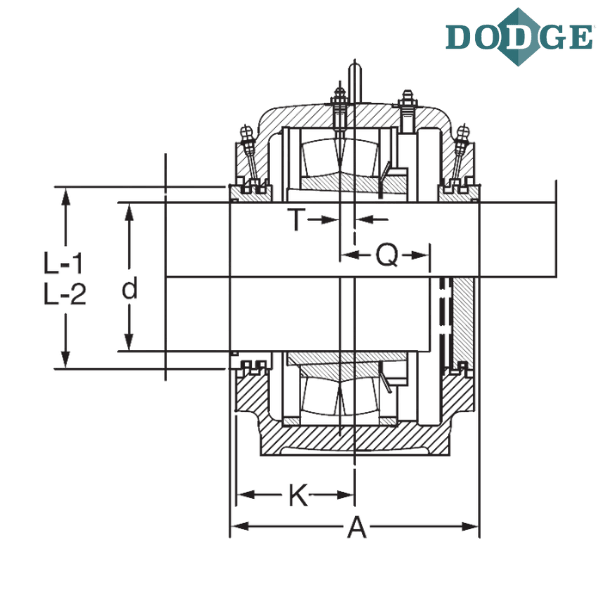

Shaft Diameter (d) mm - 220

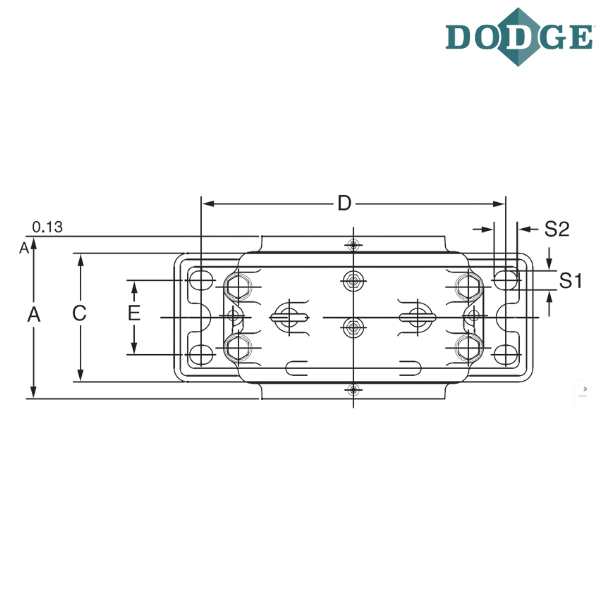

A (mm) - 290

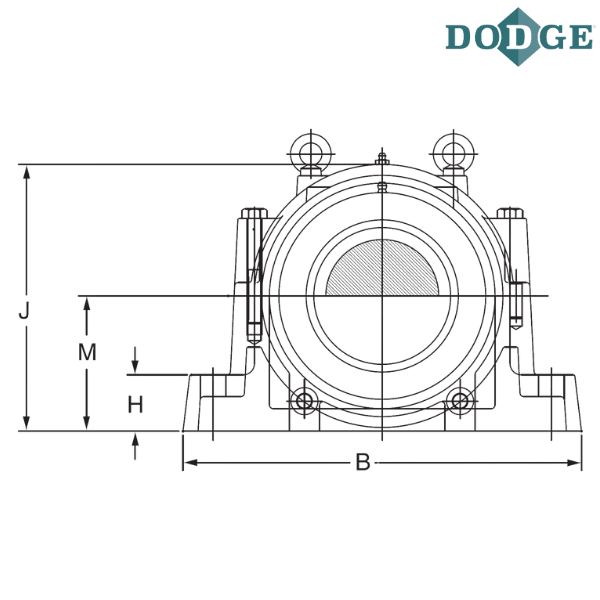

Overall Length (B) mm - 640
C (mm) - 240
H (mm) - 90
Bolt Center to Center Length (D) mm - 540
E (mm) - 140
Overall Height (J) mm - 435
Base to Center Height (M) mm - 220
K (mm) - 145
Bolt Size (S) mm - 30
S1 (mm) - 35
S2 (mm) - 42
Q (mm) - 86
T (mm) - 12
A (With DK End Cover) mm - 290
A (With TS Seal) mm - 314
A (With TT Seal) mm - 319
L1 (TS Seal) mm - 255
L2 (TT Seal) mm - 270

Notes :
SDX - Plummer Block to 320 mm

** Images are for representation purposes only
