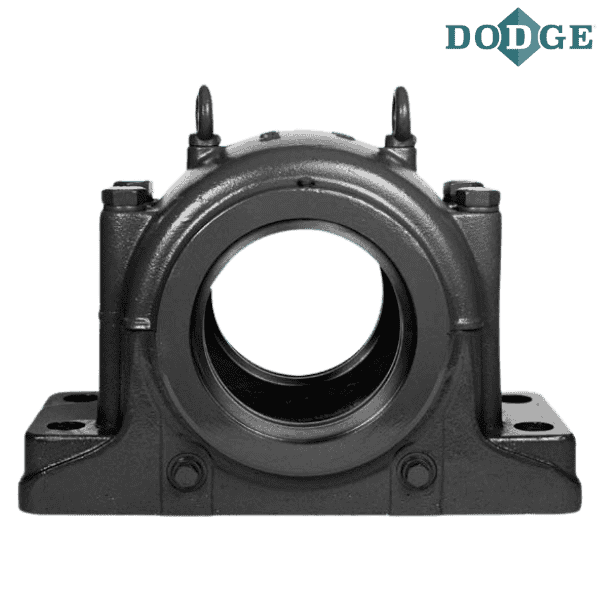

747604 DODGE - SDX 3140

Brand - DODGE
Item Number - 747604 DODGE - SDX 3140
Category - SDX 3100 (Plummer Blocks for bearings 23100K)
Description - SDX 3140
Labyrinth Seal Item Number - 747684 DODGE - TS-23140
Triple-Tect Seal Item Number - 747724 DODGE - TT-23140
End Cover Item Number - 747750 DODGE - EC-SDX3140/3144/3044
Spherical Roller Bearing Item Number - 421403 DODGE - 23140BK.MB.C3
Fixing Ring Item Number - 747157 DODGE - SR 340x10
Fixing Ring Quantity - 2
Adapter Item Number - 046236 DODGE - H 3140
Weight (kg) - 120
Shaft Diameter (d) mm - 180

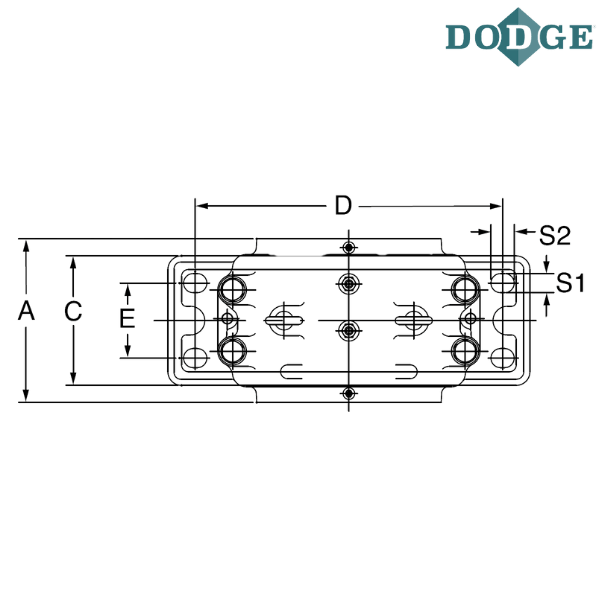

A (mm) - 280

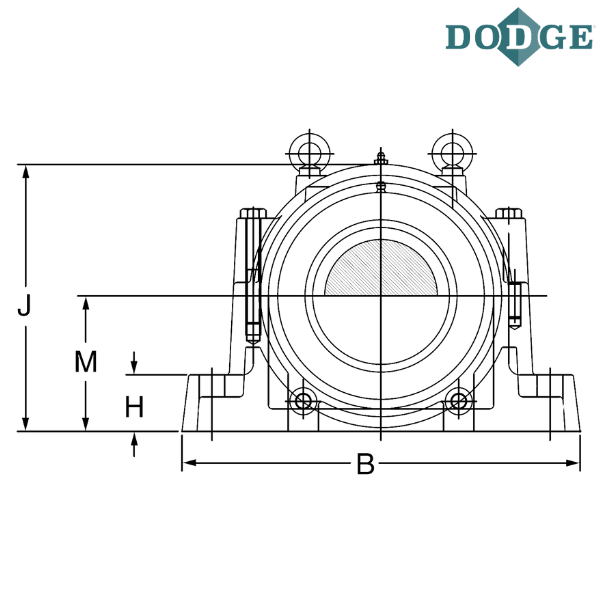

Overall Length (B) mm - 610
C (mm) - 230
H (mm) - 85
Bolt Center to Center Length (D) mm - 510
E (mm) - 130
Overall Height (J) mm - 410
Base to Center Height (M) mm - 210

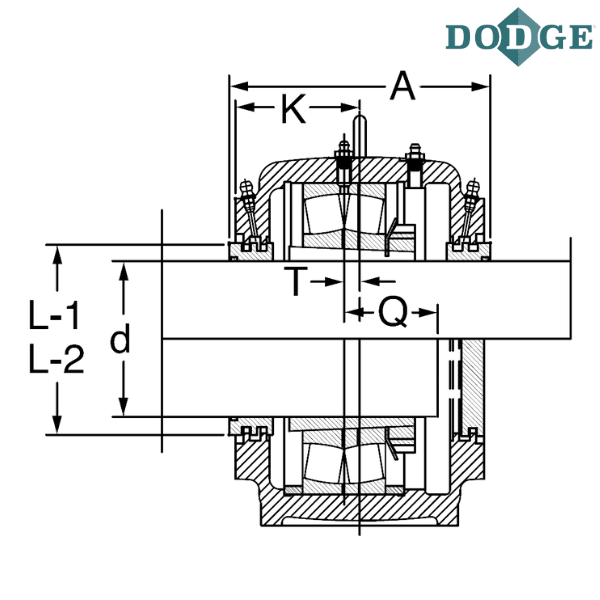

K (mm) - 140
Bolt Size (S) mm - 30
S1 (mm) - 35
S2 (mm) - 42
Q (mm) - 88
T (mm) - 10
A (With DK End Cover) mm - 280
A (With TS Seal) mm - 304
A (With TT Seal) mm - 309
L1 (TS Seal) mm - 235
L2 (TT Seal) mm - 250

Notes :
SDX - Plummer Block to 320 mm

** Images are for representation purposes only
