747600 DODGE - SDX 3134

Brand - DODGE
Item Number - 747600 DODGE - SDX 3134
Category - SDX 3100 (Plummer Blocks for bearings 23100K)

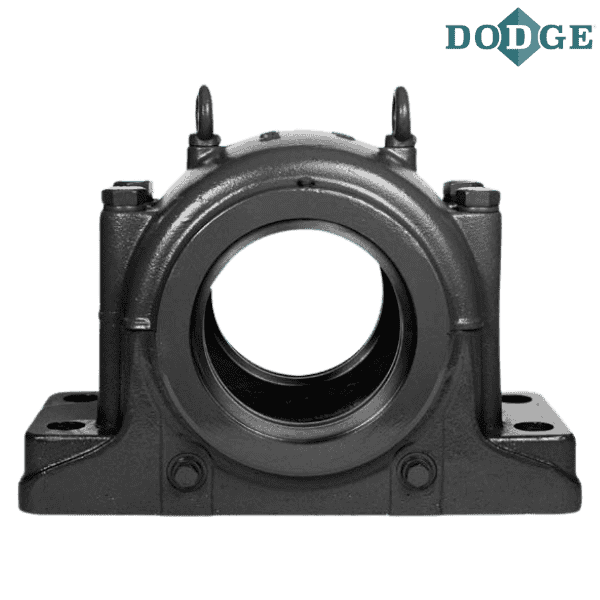

Description - SDX 3134
Labyrinth Seal Item Number - 747681 DODGE - TS-23134
Triple-Tect Seal Item Number - 747721 DODGE - TT-23134
End Cover Item Number - 747746 DODGE - EC-SDX3134
Spherical Roller Bearing Item Number - 703831 DODGE - 23134K.M.C3
Fixing Ring Item Number - 747150 DODGE - SR 280x10
Fixing Ring Quantity - 2
Adapter Item Number - 046233 DODGE - H 3134
Weight (kg) - 65
Shaft Diameter (d) mm - 150

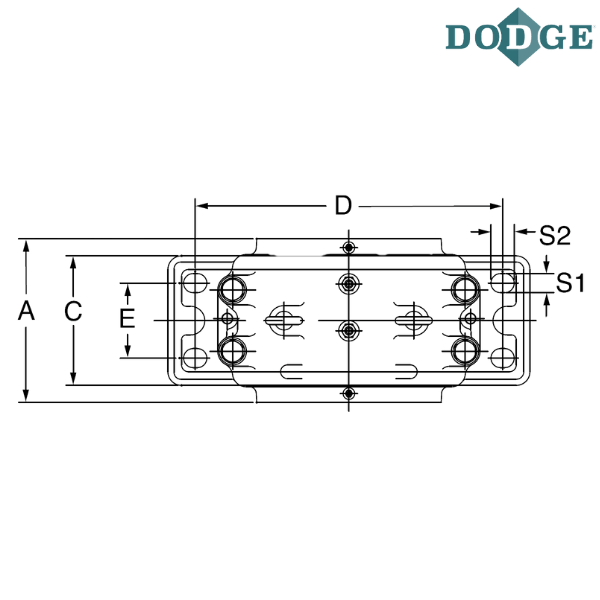

A (mm) - 230

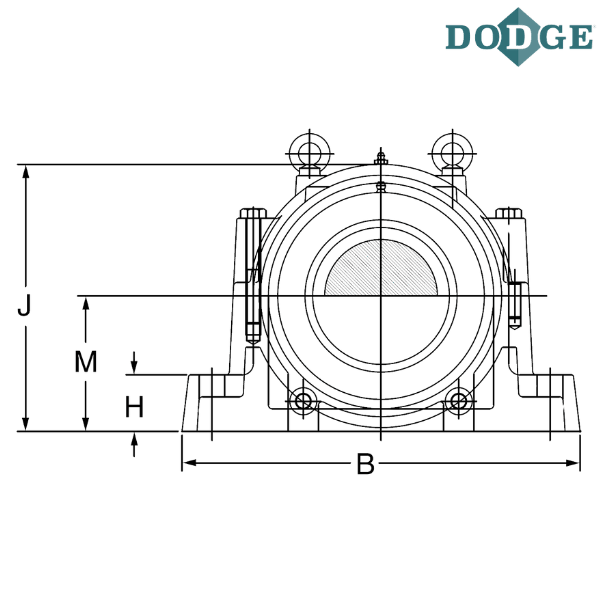

Overall Length (B) mm - 510
C (mm) - 180
H (mm) - 70
Bolt Center to Center Length (D) mm - 430
E (mm) - 100
Overall Height (J) mm - 335
Base to Center Height (M) mm - 170
K (mm) - 115
Bolt Size (S) mm - 24
S1 (mm) - 28
S2 (mm) - 34
Q (mm) - 73
T (mm) - 14

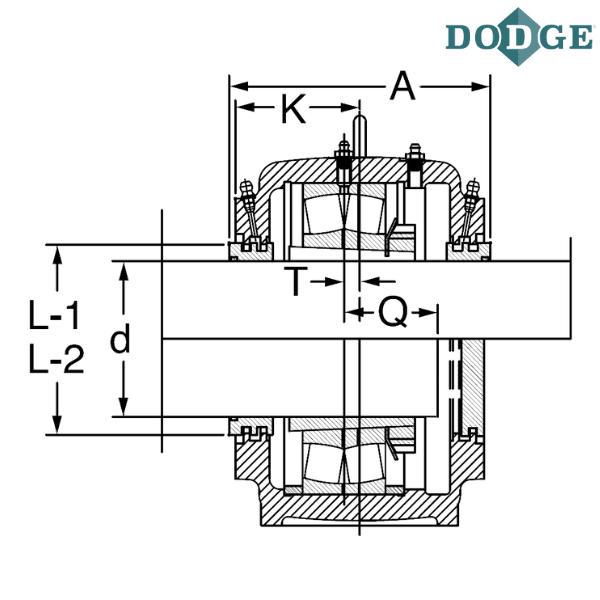

A (With DK End Cover) mm - 230
A (With TS Seal) mm - 254
A (With TT Seal) mm - 259
L1 (TS Seal) mm - 185
L2 (TT Seal) mm - 186

Notes :
SDX - Plummer Block to 320 mm
