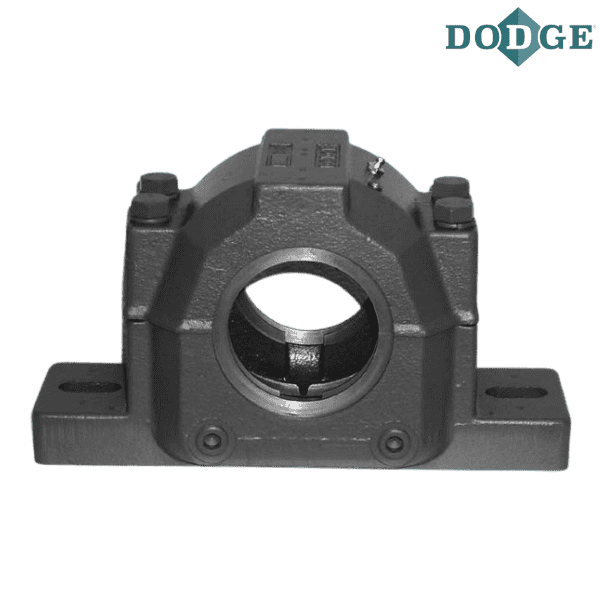

747216 DODGE - SNX 232 - TS/TT

Brand - DODGE
Item Number - 747216 DODGE - SNX 232 - TS/TT
Category - SNX 200 - TS/TT (Plummer Blocks for bearings 22200, 23200)
Description (Housing GG*) - SNX 232 - TS/TT
Part Number (Labyrinth seal) - 747250
Description (Labyrinth seal) - TS 232
Part Number (Triple-Tect seal) - 747233
Description (Triple-Tect seal) - TT 232
Weight (kg) - 99.9

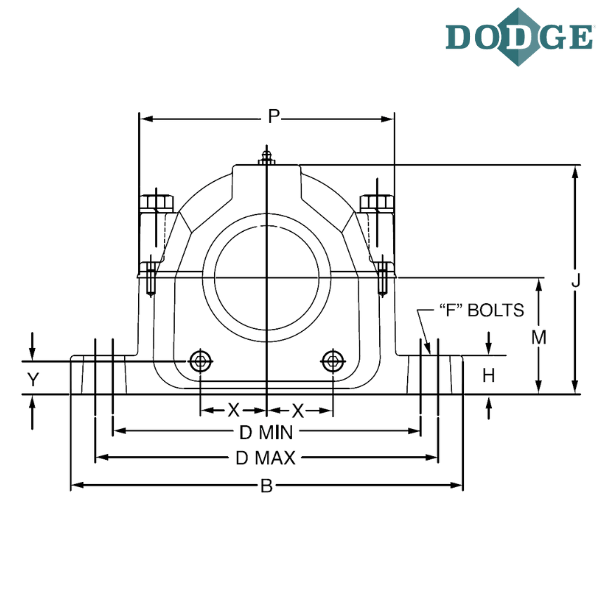

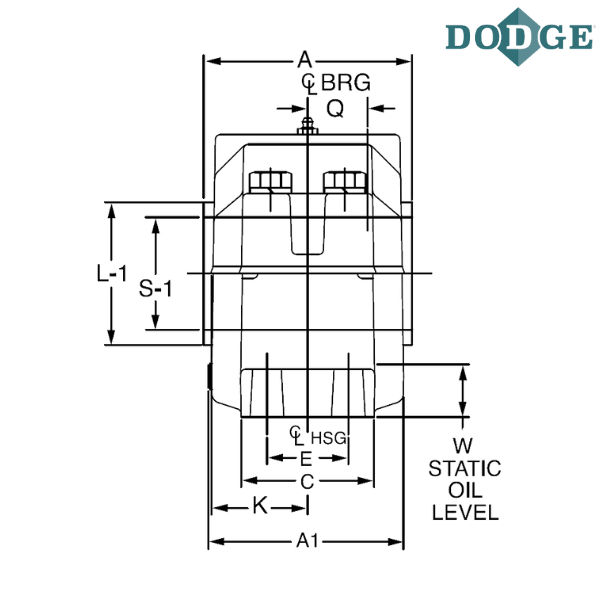

A (With TS Seal) mm - 235
A (With TT Seal) mm - 235
L-1 (inch) - 400
Other Dimensions - Available on Request

Notes :
SNX - Plummer Block to 140 mm
TS - Labyrinth Seal
TT - Triple-Tect Seal

* Housings are for use with TS or TT seals only

** Images are for representation purposes only
