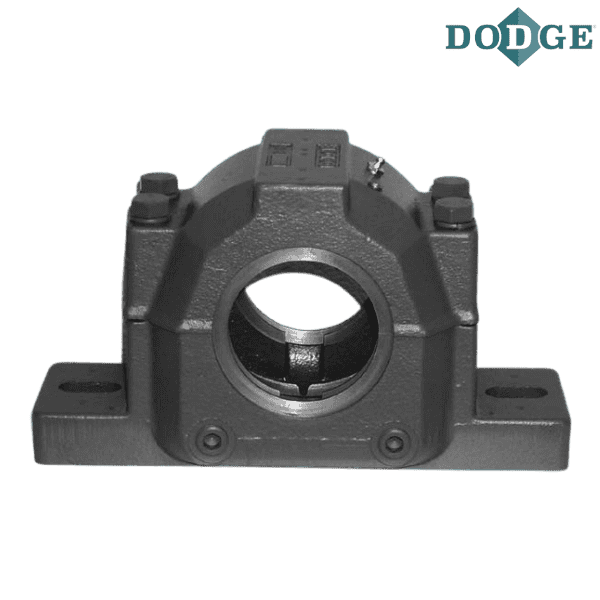

747215 DODGE - SNX 230 - TS/TT

Brand - DODGE
Item Number - 747215 DODGE - SNX 230 - TS/TT
Category - SNX 200 - TS/TT (Plummer Blocks for bearings 22200, 23200)
Description (Housing GG*) - SNX 230 - TS/TT
Part Number (Labyrinth seal) - 747249
Description (Labyrinth seal) - TS 230
Part Number (Triple-Tect seal) - 747232
Description (Triple-Tect seal) - TT 230
Weight (kg) - 77.3

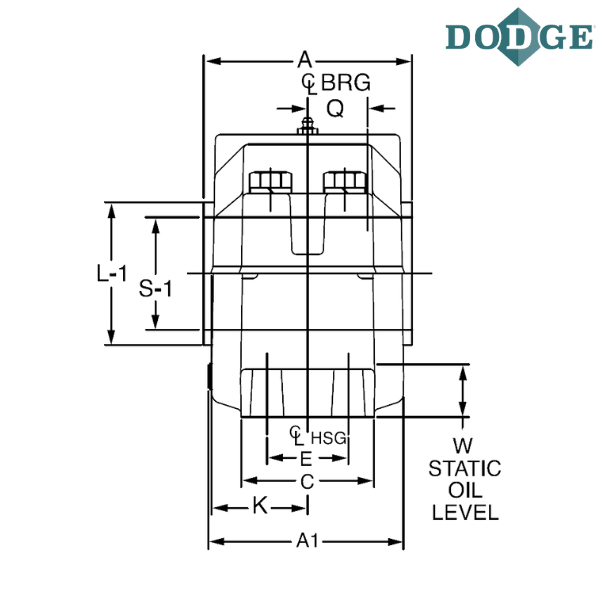

A (With TS Seal) mm - 220
A (With TT Seal) mm - 220
L-1 (inch) - 400
Other Dimensions - Available on Request

Notes :
SNX - Plummer Block to 140 mm
TS - Labyrinth Seal
TT - Triple-Tect Seal

* Housings are for use with TS or TT seals only

** Images are for representation purposes only
