Description
Brand - DODGE
Item Number - 747211 DODGE - SNX 222 - TS/TT
Category - SNX 200 - TS/TT (Plummer Blocks for bearings 22200, 23200)
Description (Housing GG*) - SNX 222 - TS/TT
Part Number (Labyrinth seal) - 747245
Description (Labyrinth seal) - TS 222
Part Number (Triple-Tect seal) - 747228
Description (Triple-Tect seal) - TT 222
Weight (kg) - 35.8

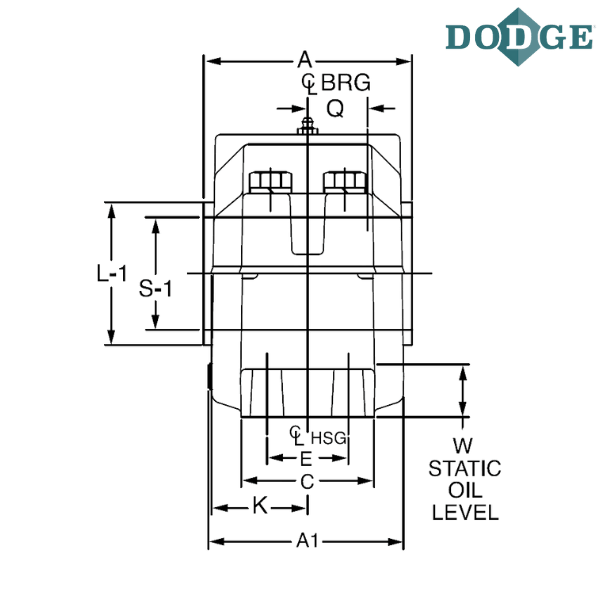

A (With TS Seal) mm - 168
A (With TT Seal) mm - 168
L-1 (inch) - 131
Other Dimensions - Available on Request
Notes :
SNX - Plummer Block to 140 mm
TS - Labyrinth Seal
TT - Triple-Tect Seal
* Housings are for use with TS or TT seals only

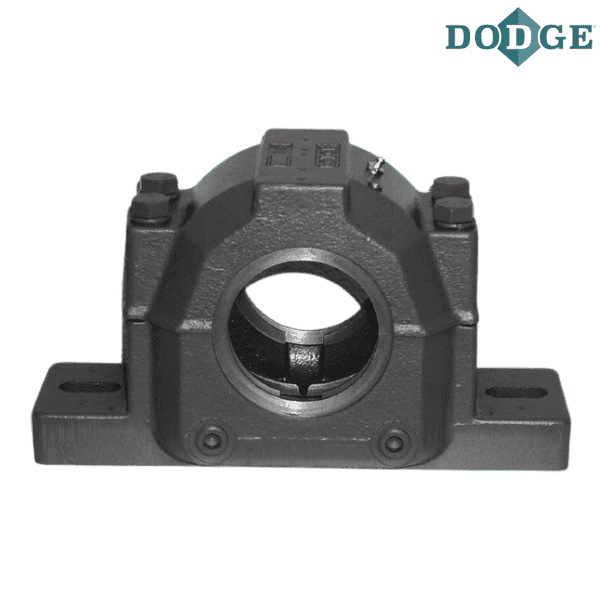

** Images are for representation purposes only
