747202 DODGE - SNX 211 - TS/TT

Brand - DODGE
Item Number - 747202 DODGE - SNX 211 - TS/TT
Category - SNX 200 - TS/TT (Plummer Blocks for bearings 22200, 23200)
Description (Housing GG*) - SNX 211 - TS/TT
Part Number (Labyrinth seal) - 747236
Description (Labyrinth seal) - TS 211
Part Number (Triple-Tect seal) - 747219
Description (Triple-Tect seal) - TT 211
Weight (kg) - 7.1
A (With TS Seal) mm - 100
A (With TT Seal) mm - 100
L-1 (inch) - 68
Other Dimensions - Available on Request

Notes :
SNX - Plummer Block to 140 mm
TS - Labyrinth Seal
TT - Triple-Tect Seal

* Housings are for use with TS or TT seals only

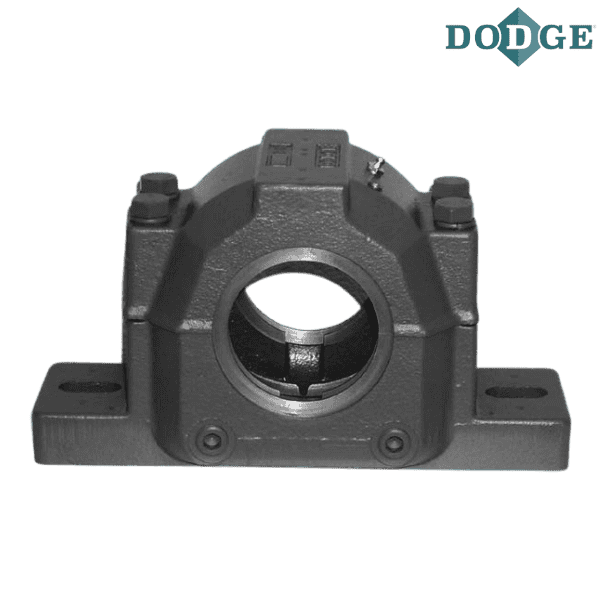

** Images are for representation purposes only
