747049 DODGE - SNX 3038

Brand - DODGE
Item Number - 747049 DODGE - SNX 3038
Category - SNX 30 (Plummer Blocks for bearings 23000K)
Description - SNX 3038
FS Seal Item Number - 713647 DODGE - 10X12X300
VR Seal Item Number - 738169 DODGE - VS0170
Spherical Roller Bearing Item Number - 703689 DODGE - 23038EASK.M.C3
Fixing Ring Item Number - 747151 DODGE - SR 290X10
Fixing Ring Quantity - 1
Adapter Item Number - 719429 DODGE - H 3038

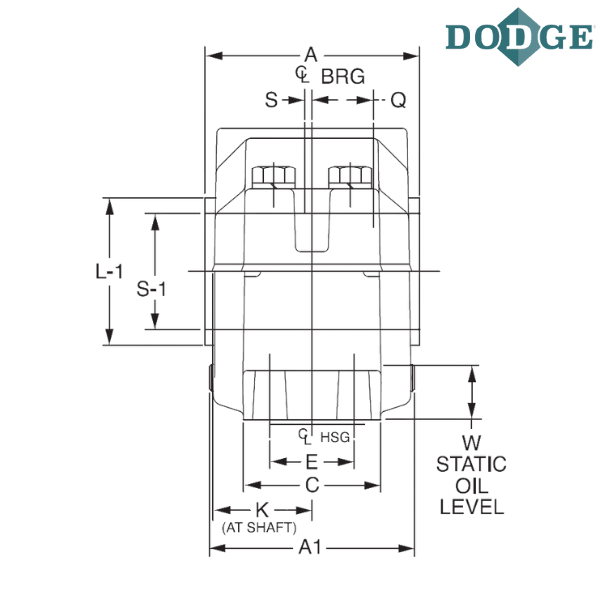

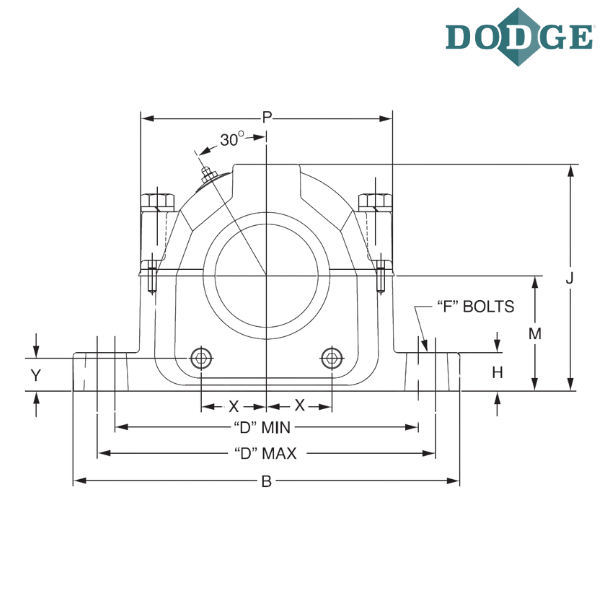

Weight (kg) - 235

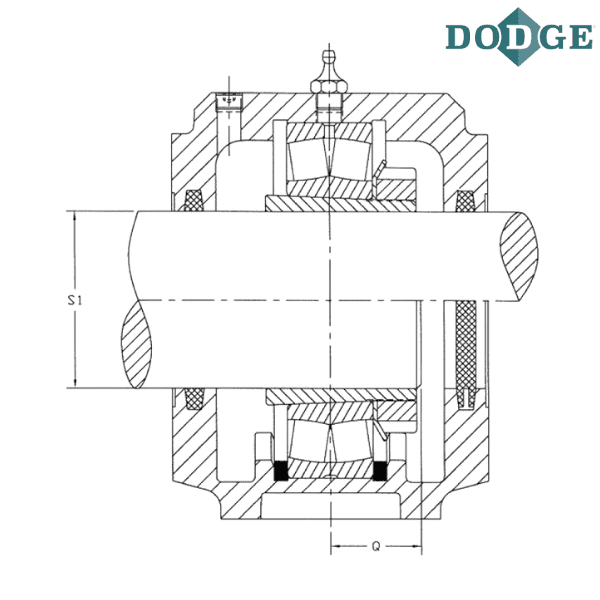

Shaft Size (S-1) mm - 170
A1 (mm) - 241
Overall Length (B) mm - 550
C (mm) - 159
Bolt to Bolt Minimum Distance (D min) mm - 457
Bolt to Bolt Maximum Distance (D max) mm - 483
F-Bolt Diameter - M30
H (mm) - 60
Overall Height (J) mm - 338
K (mm) - 118
Base to Center Height (M) mm - 170
P (mm) - 379
Q (mm) - 68.5
Static Oil Level (W) mm - 48
X (mm) - 102.4
Y (mm) - 34
A (With LD Seal) mm - 235
A (With Felt Seal) mm - 235
A (With End Cover) mm - 235
A (With VR Seal) mm - 252
L1 (mm) - 186

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
