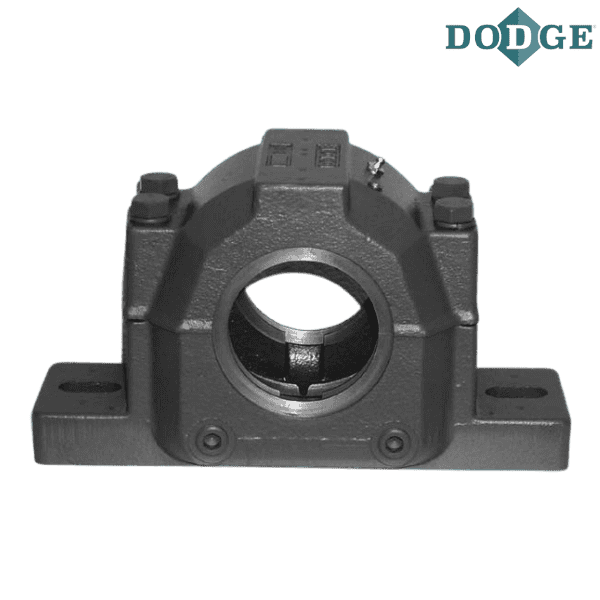

747047 DODGE - SNX 3034

Brand - DODGE
Item Number - 747047 DODGE - SNX 3034
Category - SNX 30 (Plummer Blocks for bearings 23000K)
Description - SNX 3034
FS Seal Item Number - 713641 DODGE - 10X12X280
VR Seal Item Number - 738165 DODGE - VS0150
End Cover Item Number - 740383 DODGE - DK 165
Spherical Roller Bearing Item Number - 703670 DODGE - 23034K.C3
Fixing Ring Item Number - 747148 DODGE - SR 260X10
Fixing Ring Quantity - 1
Adapter Item Number - 719425 DODGE - H 3034
Weight (kg) - 162

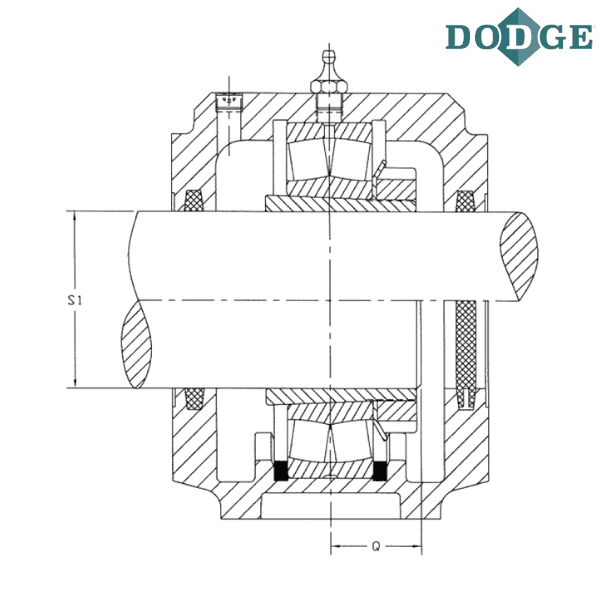

Shaft Size (S-1) mm - 150
A1 (mm) - 226

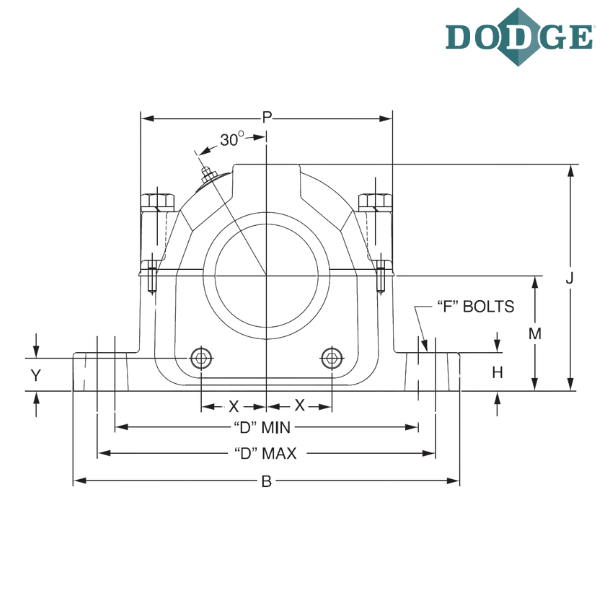

Overall Length (B) mm - 530
C (mm) - 159
Bolt to Bolt Minimum Distance (D min) mm - 426
Bolt to Bolt Maximum Distance (D max) mm - 464
F-Bolt Diameter - M30
H (mm) - 60
Overall Height (J) mm - 317
K (mm) - 110
Base to Center Height (M) mm - 160
P (mm) - 364
Q (mm) - 62.5

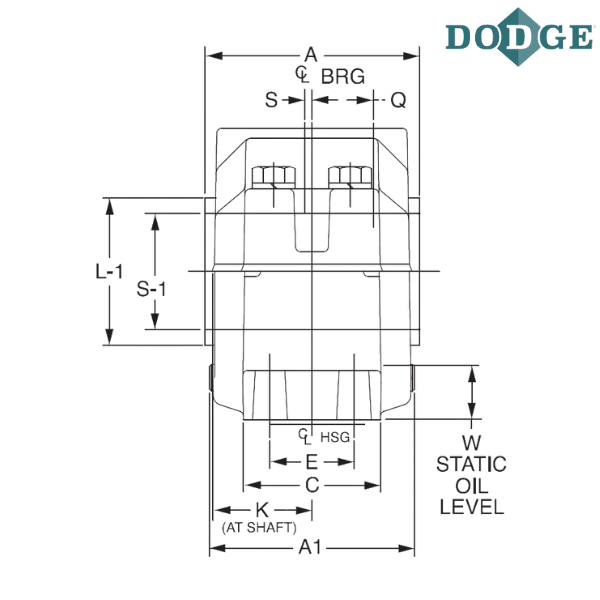

Static Oil Level (W) mm - 50
X (mm) - 91.3
Y (mm) - 33.7
A (With LD Seal) mm - 220
A (With Felt Seal) mm - 220
A (With End Cover) mm - 220
A (With VR Seal) mm - 234
L1 (mm) - 164

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
