747046 DODGE - SNX 3032

Brand - DODGE
Item Number - 747046 DODGE - SNX 3032
Category - SNX 30 (Plummer Blocks for bearings 23000K)
Description - SNX 3032
LD Seal Item Number - 725346 DODGE - LD 140
FS Seal Item Number - 713634 DODGE - 10X12X265
VR Seal Item Number - 738163 DODGE - VS0140
End Cover Item Number - 708989 DODGE - DK 140
Spherical Roller Bearing Item Number - 703661 DODGE - 23032K.C3
Fixing Ring Item Number - 747145 DODGE - SR 240X10
Fixing Ring Quantity - 1
Adapter Item Number - 719423 DODGE - H 3032
Weight (kg) - 161

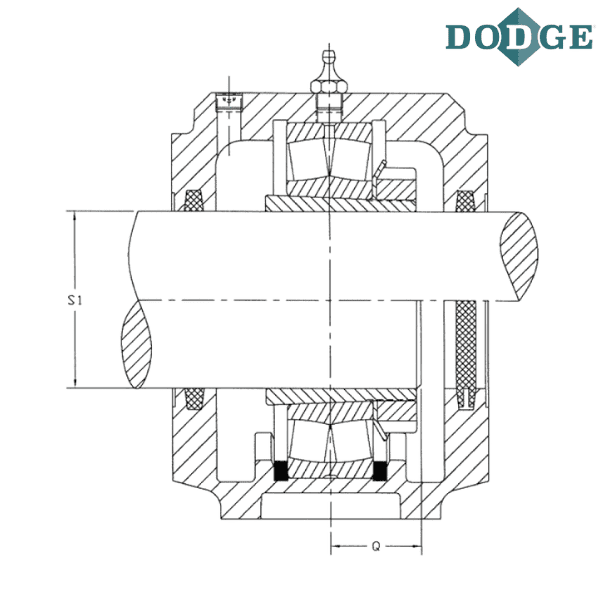

Shaft Size (S-1) mm - 140

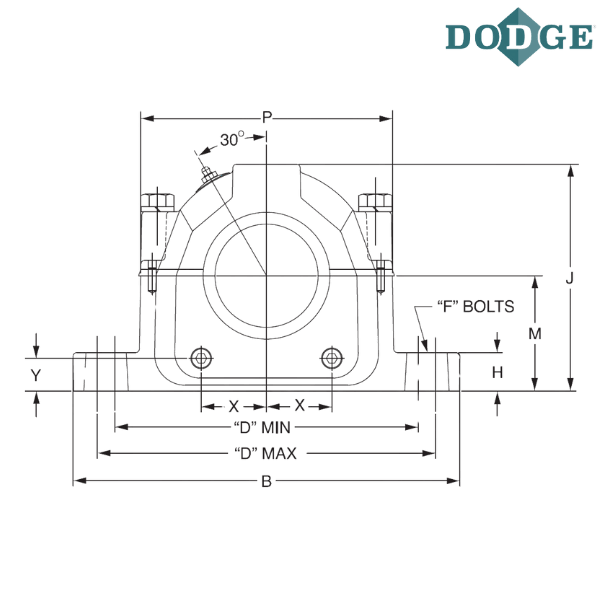

A1 (mm) - 197
Overall Length (B) mm - 445
C (mm) - 130
Bolt to Bolt Minimum Distance (D min) mm - 374
Bolt to Bolt Maximum Distance (D max) mm - 387
F-Bolt Diameter - M24
H (mm) - 50
Overall Height (J) mm - 290
K (mm) - 95
Base to Center Height (M) mm - 150
P (mm) - 315
Q (mm) - 58
Static Oil Level (W) mm - 54
X (mm) - 84.1
Y (mm) - 39

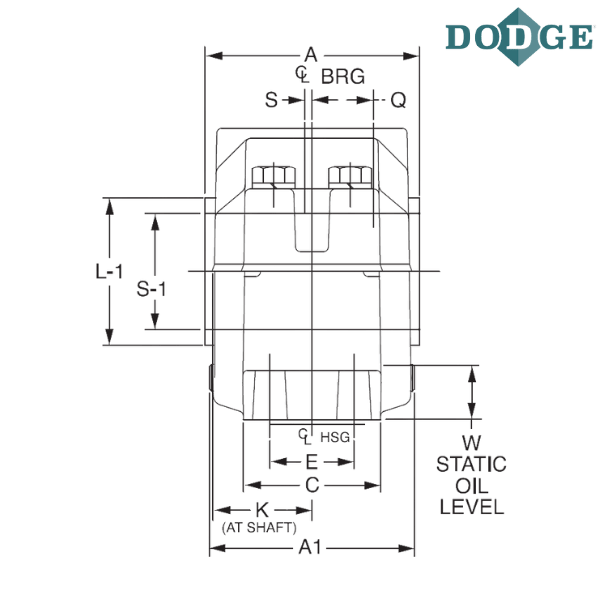

A (With LD Seal) mm - 191
A (With Felt Seal) mm - 191
A (With End Cover) mm - 191
A (With VR Seal) mm - 204
L1 (mm) - 154

Notes :

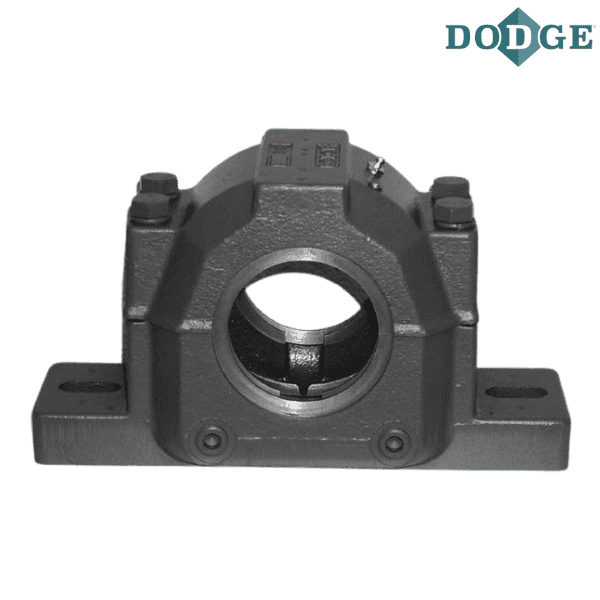

SNX - Plummer Block to 140 mm

** Images are for representation purposes only
