747043 DODGE - SNX 3026

Brand - DODGE
Item Number - 747043 DODGE - SNX 3026
Category - SNX 30 (Plummer Blocks for bearings 23000K)
Description - SNX 3026
LD Seal Item Number - 725343 DODGE - LD 115
FS Seal Item Number - 713603 DODGE - 10X12X210
VR Seal Item Number - 738158 DODGE - VS0115
End Cover Item Number - 708970 DODGE - DK 115
Spherical Roller Bearing Item Number - 703628 DODGE - 23026K.C3
Fixing Ring Item Number - 747136 DODGE - SR 200X10
Fixing Ring Quantity - 1
Adapter Item Number - 719420 DODGE - H 3026
Weight (kg) - 105

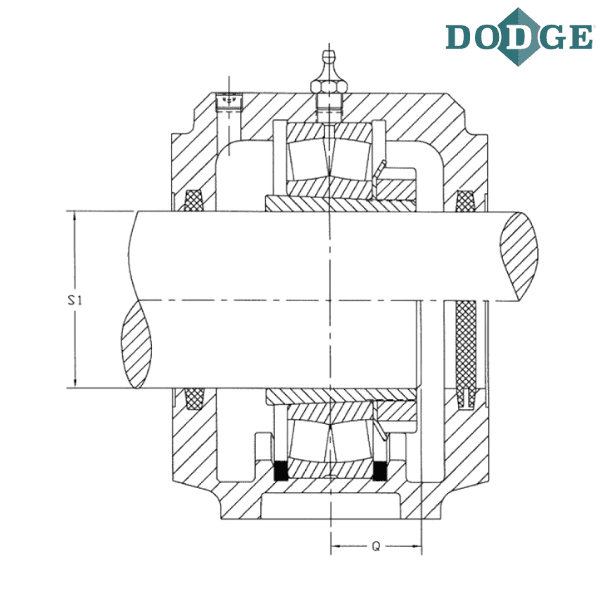

Shaft Size (S-1) mm - 115

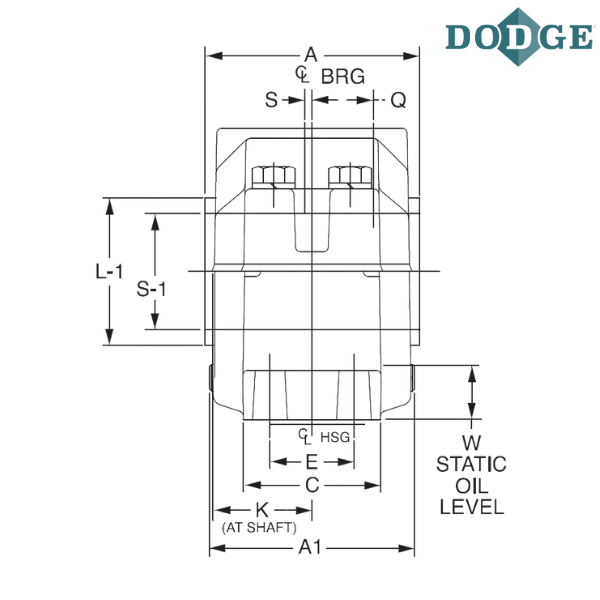

A1 (mm) - 174

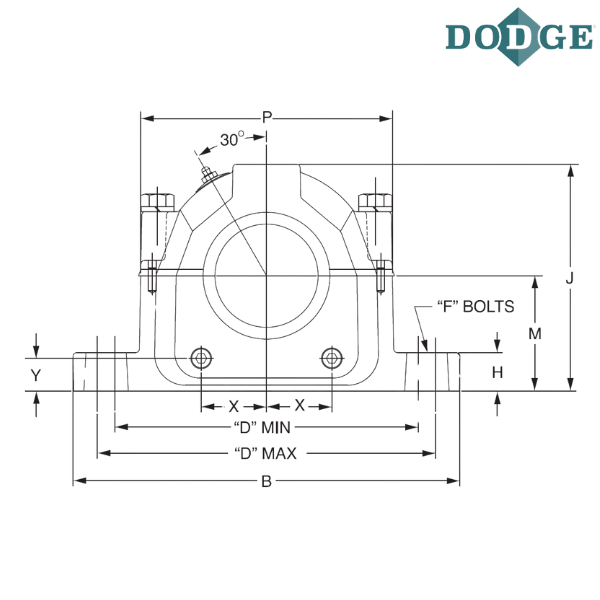

Overall Length (B) mm - 419
C (mm) - 121
Bolt to Bolt Minimum Distance (D min) mm - 324
Bolt to Bolt Maximum Distance (D max) mm - 364
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 239
K (mm) - 84
Base to Center Height (M) mm - 125
P (mm) - 269
Q (mm) - 49
Static Oil Level (W) mm - 42
X (mm) - 73
Y (mm) - 33.8
A (With LD Seal) mm - 168
A (With Felt Seal) mm - 168
A (With End Cover) mm - 168
A (With VR Seal) mm - 179
L1 (mm) - 118

Notes :
SNX - Plummer Block to 140 mm

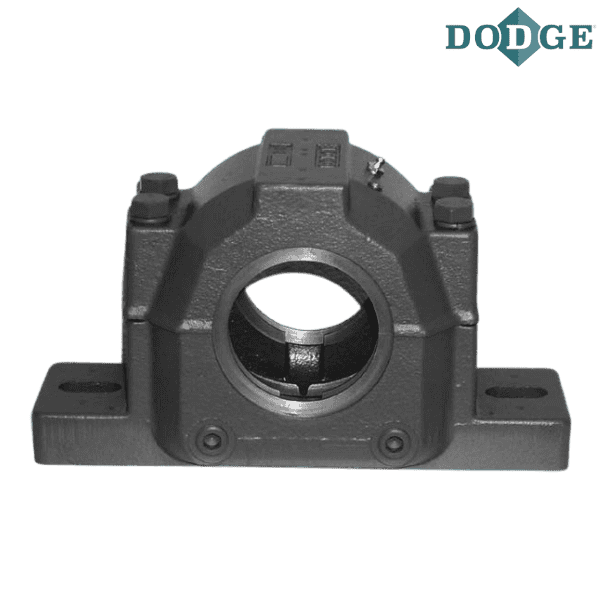

** Images are for representation purposes only
