747041 DODGE - SNX 532

Brand - DODGE
Item Number - 747041 DODGE - SNX 532
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 532
SK LD Seal Item Number - 496462 DODGE - SK 532 LD 140
SK FS Seal Item Number - 496480 DODGE - SK 532 FS 140
SK VR Seal Item Number - 496498 DODGE - SK 532 VR 140
Labyrinth Seal Item Number - 747344 DODGE - TS 532
Triple-Tect Seal Item Number - 747400 DODGE - TT 532
End Cover Item Number - 740384 DODGE - DK 175
Spherical Roller Bearing Item Number - 422021 DODGE - 22232EK1.C3
Fixing Ring Item Number - 747152 DODGE - SR 290x17
Fixing Ring Quantity - 2
Adapter Item Number - 046232 DODGE - H 3132
Spherical Roller Bearing Item Number - 703996 DODGE - 23232K.C3
Fixing Ring Item Number - 747195 DODGE - SR 290x5
Fixing Ring Quantity - 2
Adapter Item Number - 719408 DODGE - H 2332
Sight Glass Item Number - 740453 DODGE - SG 532
Weight (kg) - 99.9

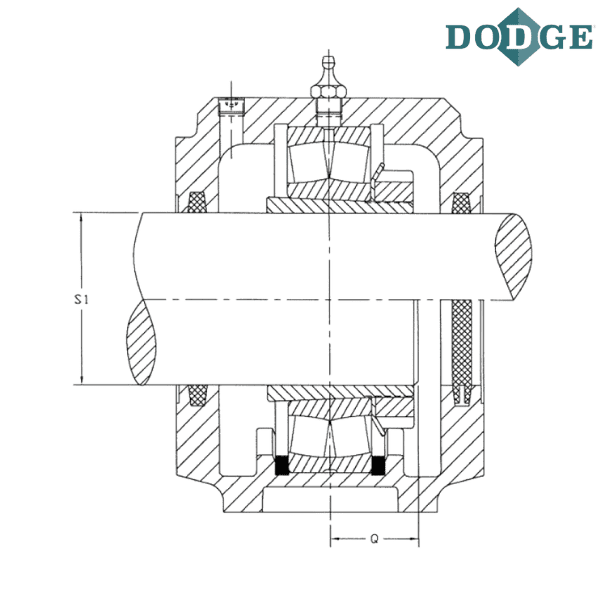

Shaft Size (S-1) mm - 140

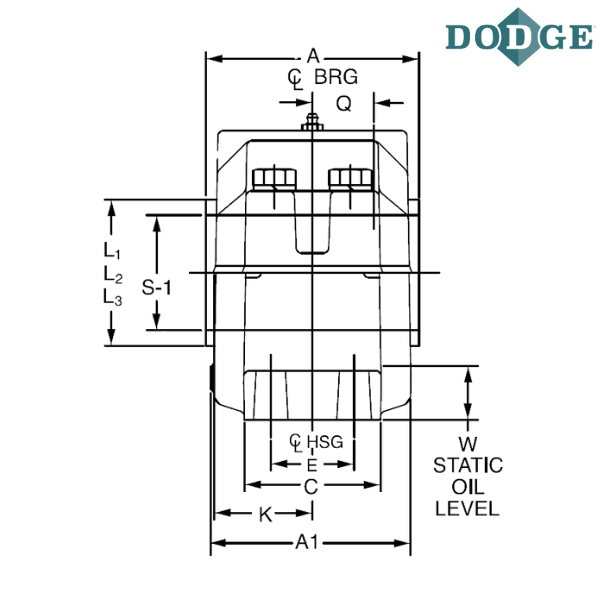

A1 (mm) - 241

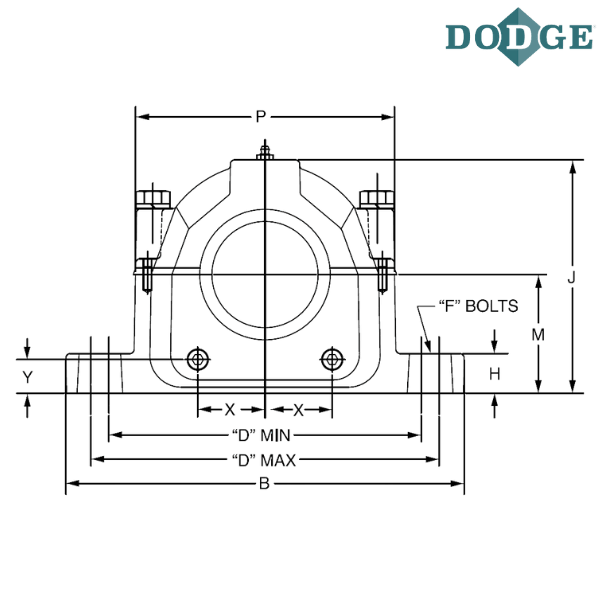

Overall Length (B) mm - 550
C (mm) - 160
Bolt to Bolt Minimum Distance (D min) mm - 457
Bolt to Bolt Maximum Distance (D max) mm - 483
F-Bolt Diameter - M30
H (mm) - 60
Overall Height (J) mm - 338
K (mm) - 118
Base to Center Height (M) mm - 170
P (mm) - 379
Q (mm) - 68
Static Oil Level (W) mm - 53.2
X (mm) - 102
Y (mm) - 34
A (With LD Seal) mm - 235
A (With FS Seal) mm - 235
A (With VR Seal) mm - 247
A (With TS Seal) mm - 243
A (With TT Seal) mm - 253
A (With DK End Cover) mm - 235
L1 (VR Seal) mm - 154
L2 (TS Seal) mm - 188
L3 (TT) mm - 186

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
