747041 DODGE - SNX 232

Brand - DODGE
Item Number - 747041 DODGE - SNX 232
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 232
FS Seal Item Number - 713647 DODGE - 10X12X300
VR Seal Item Number - 738170 DODGE - VS0175
DK End Cover Item Number - 740384 DODGE - DK 175
Spherical Roller Bearing Item Number - 421275 DODGE - 22232E1.C3
Fixing Ring Item Number - 747152 DODGE - SR 290x17
Fixing Ring Quantity - 2
Spherical Roller Bearing Item Number - 741550 DODGE - 23232.C3
Fixing Ring Item Number - 747195 DODGE - SR 290x5
Fixing Ring Quantity - 2
Locknut Item Number - 046299 DODGE - KM 32
Lockwasher Item Number - 046318 DODGE - MB 32
Sight Glass Item Number - 740453 DODGE - SG 232
Weight (kg) - 99.9

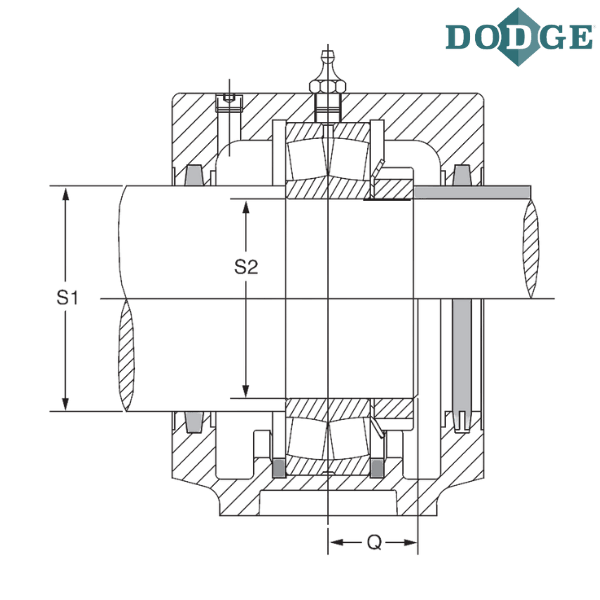

Shaft Size (S-1) mm - 175
Shaft Size (S-2) mm - 160

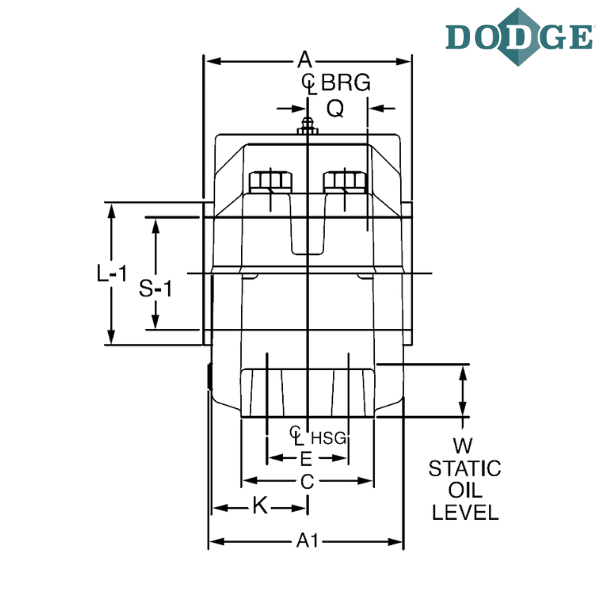

A1 (mm) - 241

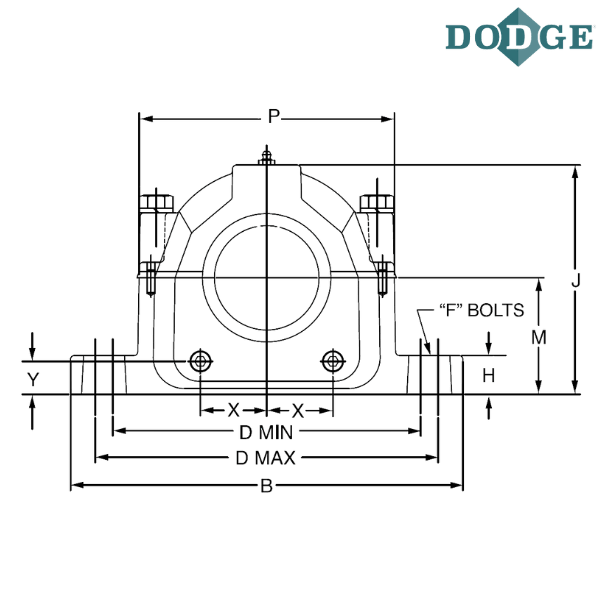

Overall Length (B) mm - 550
C (mm) - 160
Bolt to Bolt Minimum Distance (D min) mm - 457
Bolt to Bolt Maximum Distance (D max) mm - 483
F-Bolt Diameter - M30
H (mm) - 60
Overall Height (J) mm - 338
K (mm) - 118
Base to Center Height (M) mm - 170
P (mm) - 379
Q (mm) - 40
Static Oil Level (W) mm - 53.2
X (mm) - 102
Y (mm) - 34
A (With LD Seal) mm - 235
A (With FS Seal) mm - 235
A (With DK End Cover) mm - 235
A (With TS Seal) mm - 243
A (With VR Seal) mm - 250
L-1 (mm) - 400

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
